H.F.X Global Technical Support for EMS Board Splitting Project in the United States: Landing Upgrade of Double End Milling Cutter Board Splitting Machine

In the EMS electronic manufacturing service industry in the United States, high mix, medium batch flexible production is the core business model of many contract manufacturers. The traditional PCBA board splitting process has insufficient accuracy and low efficiency, which can easily cause component damage when dividing complex and irregular circuit boards, directly lowering product yield. As a professional service provider specializing in SMT full chain equipment and services, H.F.X relies on its previous successful cooperation with top EMS customers in the United States to implement the H.F.X-850L double headed milling cutter splitting machine, which is equipped with on-site technical support throughout the entire process, helping customers completely upgrade their PCB cutting technology and achieve dual breakthroughs in board splitting efficiency and accuracy.

The US double end milling cutter splitting machine project has been successfully delivered, deepening long-term partnership cooperation

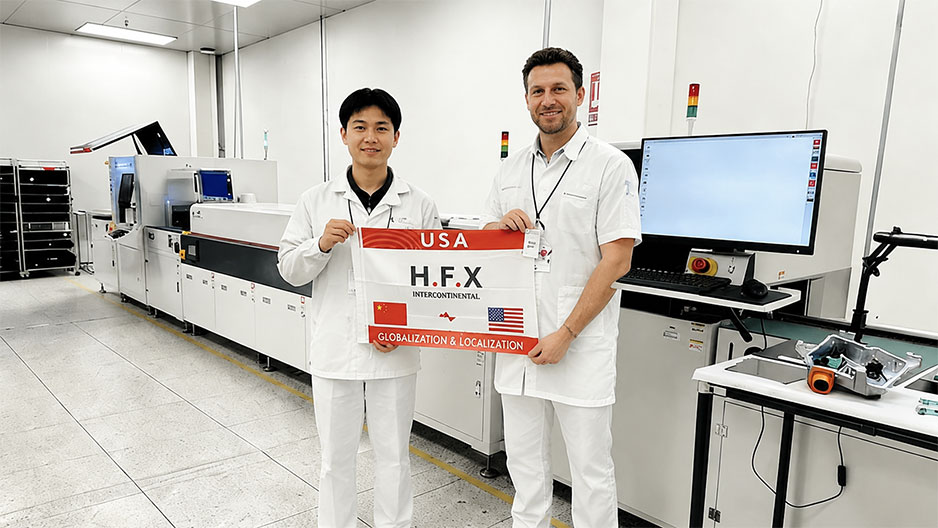

H.F.X always insists on providing high-quality SMT hardware equipment and professional landing technical services to safeguard the production upgrades of manufacturing customers around the world. Recently, our overseas engineering team successfully completed another on-site installation and delivery task in the United States, providing full process exclusive on-site technical support for the H.F.X-850L double end milling cutter splitting machine project for local cooperative customers, ensuring that the new equipment can quickly integrate into the existing production line and achieve stable mass production.

The American client for this service is a highly developed leading EMS electronic manufacturing service provider in the local area. Its core business focuses on the full process assembly of PCBA and provides customized manufacturing solutions for multiple categories of electronic products. It specializes in flexible production modes with high mixed categories and medium batch sizes, and has high requirements for the operational reliability and process flexibility of production equipment.

This client has had a deep cooperation with H.F.X before. They purchased H.F.X's three proof coating machine to provide protection for their PCBA products, isolating them from humid environments, dust, and chemical pollutants. At that time, H.F.X engineers provided a complete set of on-site installation and training services, and the project implementation effect was excellent. It is based on the full trust of the previous cooperation that the customer did not hesitate to choose H.F.X as the core partner again when planning to upgrade the PCB cutting process.

Double head splitting machine accurately matches requirements and solves the core pain points of traditional craftsmanship

In the entire PCBA manufacturing process, the board splitting process is a key link that directly affects the final product yield. If the cutting accuracy does not meet the standard, it is easy to directly damage the precision components on the board, causing unnecessary scrap losses. However, traditional manual folding or low-end single blade cutting processes not only have low production efficiency, but also easily bring additional mechanical stress to the PCB board during the cutting process, laying hidden dangers for later product operation failures.

In order to completely solve these long-standing pain points that have plagued production, the customer ultimately chose the H.F.X-850L double headed milling cutter splitter, whose core performance fully fits the customer's production scenario:

1. Double headed synchronous cutting design, two milling cutters can simultaneously process two PCB boards, doubling the board splitting capacity without increasing equipment footprint.

2. Equipped with a high-speed and high-precision spindle motor, the cutting process has smooth edges without burrs, achieving precise and stress free clean cutting.

3. Equipped with a high-definition visual alignment system, each PCB board fed into the device can achieve automatic and precise positioning, avoiding deviations caused by manual alignment.

4. User friendly control software, the cutting program of new products can be quickly written and imported, with extremely low entry barriers.

5. Fully enclosed dust collection system, all dust generated during the cutting process is collected centrally, maintaining a clean and safe working environment throughout the process, in compliance with local workshop environmental regulations.

This device has strong adaptability to various irregular shaped PCB boards, perfectly covering the board splitting requirements of complex circuit board designs commonly found in consumer electronics, industrial control, and automotive electronic products.

On site on-site service throughout the entire process ensures the rapid implementation and mass production of equipment

In order to prevent customers from taking detours and quickly put new equipment into efficient and stable production, H.F.X specially dispatched senior technical support engineers to the customer's production factory in the United States to provide on-site services throughout the entire process:

1. Equipment unpacking and installation: Engineers assist customers throughout the entire process of safely unpacking large equipment, accurately placing the equipment in the planned production area, checking the surrounding working environment one by one, and confirming that it fully complies with the safety regulations for equipment operation.

2. Deployment of mechanical and electrical systems: Complete the layout of all supporting circuits, calibrate the accuracy of the core spindle, and install and debug the dust removal and collection units. Verify the operating status of all hardware components to meet standards.

3. Customized configuration of control software: Engineers guide customer teams step by step to complete the backend settings of cutting programs, proficiently master the operation methods of visual alignment systems, and quickly adjust exclusive cutting parameters for different types of PCB boards.

4. Full role practical training: Targeted training is provided for frontline equipment operators, production supervisors, and dedicated maintenance personnel. All participants independently complete multiple rounds of PCB board splitting operations under the full supervision of engineers, fully mastering equipment usage skills.

5. Trial production and final acceptance: The customer conducted multiple rounds of testing using their actual mass-produced PCB connected motherboards to repeatedly verify cutting quality and production efficiency. After all indicators met the expected standards, the equipment successfully passed the customer's final acceptance.

Customer feedback exceeded expectations, long-term service continues to follow up

After the project was delivered, the customer gave high praise and was very satisfied with the stability of the operation, cutting speed, and simple and easy-to-use user interface of this double headed plate splitter. The most surprising feature for customers is the dual head synchronous cutting design, which directly doubles the overall production capacity of the splitting process without the need for additional operators or expanding the production workshop footprint. At the same time, the customer also fully recognized H.F.X's rapid response capability and clear and efficient communication experience throughout the entire installation service process. At present, this dual head splitter is running smoothly on the production line, and the factory is fully capable of taking on more PCBA orders while achieving higher cutting accuracy and lower overall production costs.

The smooth delivery of this plate splitting machine project is the second successful cooperation between H.F.X and this American EMS customer. As the customer's business continues to expand, H.F.X will also provide long-term full cycle service support, including subsequent equipment performance technology upgrades, regular on-site follow-up inspections, remote software updates and rapid troubleshooting, as well as equipment expansion plans for future production line expansion. We always believe that professional and reliable technical support is equally important as high-quality hardware equipment, which is also the core reason why H.F.X continues to invest resources in building a global localized service team and deeply understanding the real production needs of customers in different regions.

If you are currently planning to upgrade your own SMT production line or PCB splitting process, H.F.X can provide you with a complete customized solution that meets your needs at any time, from equipment selection guidance in the early stage to on-site installation training, accompanying you throughout the entire process of production line upgrade.
