Product features:

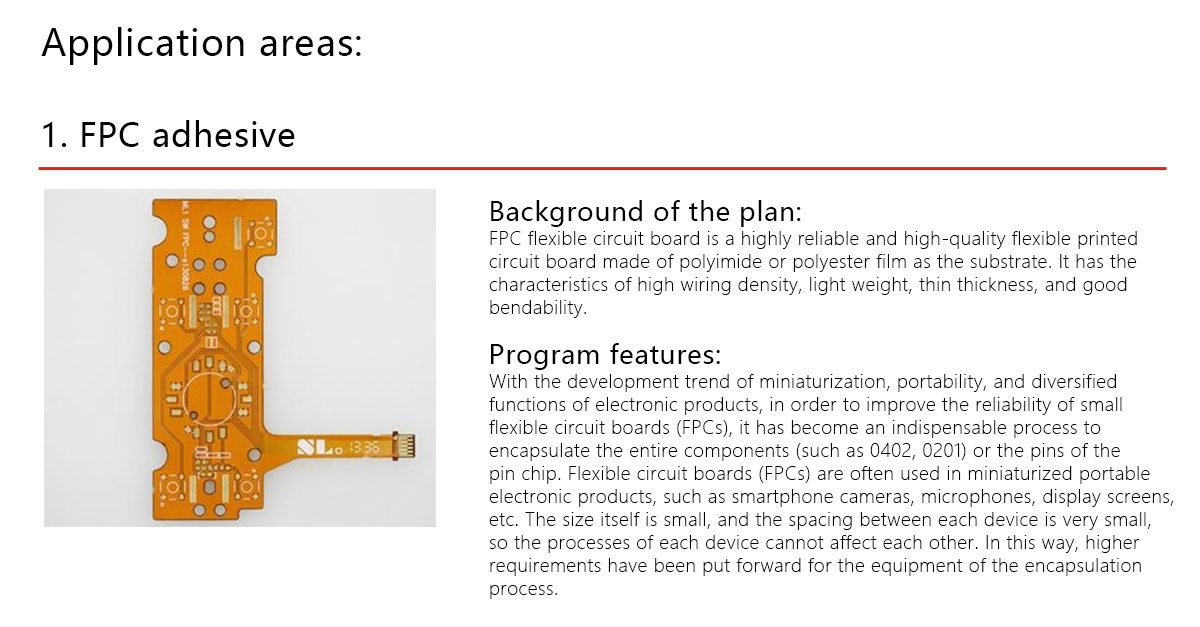

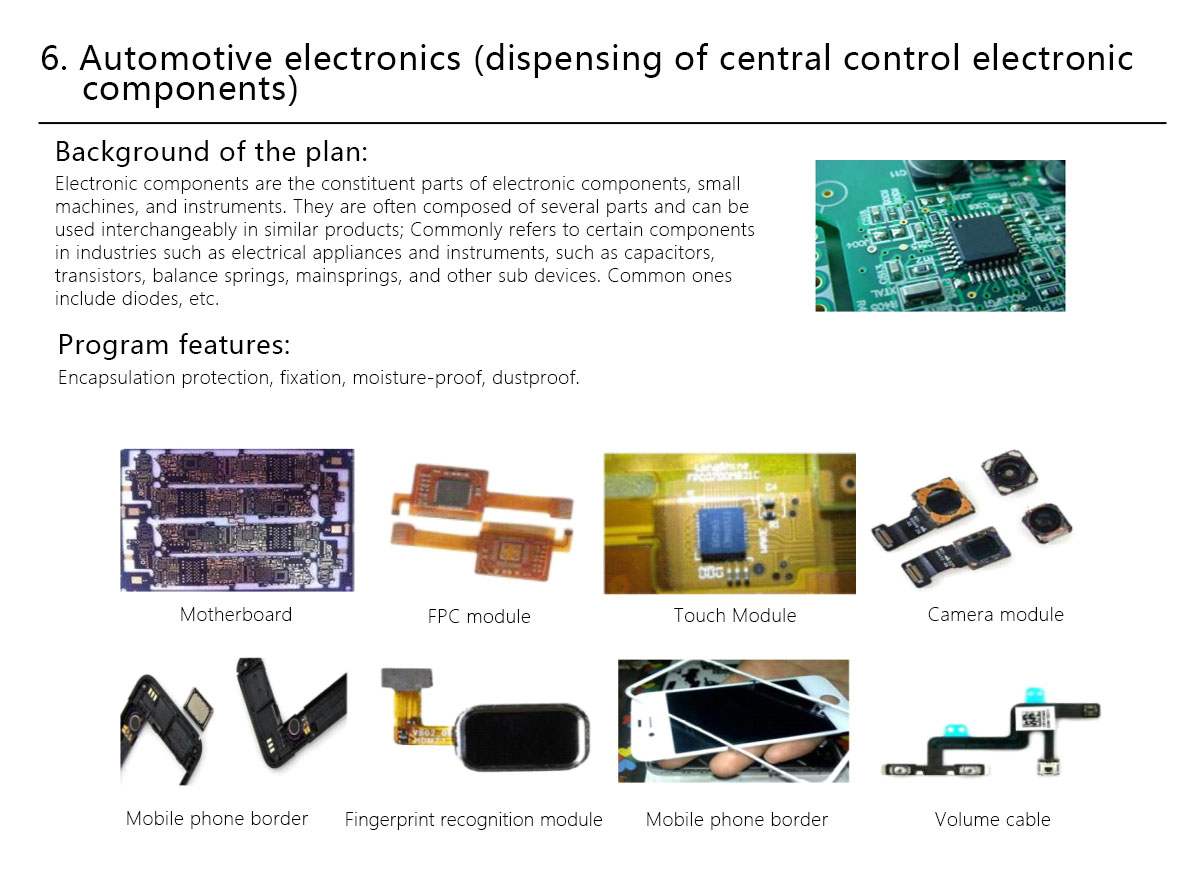

1. Encapsulation protection and reinforcement of PCB and FPC soft board components.

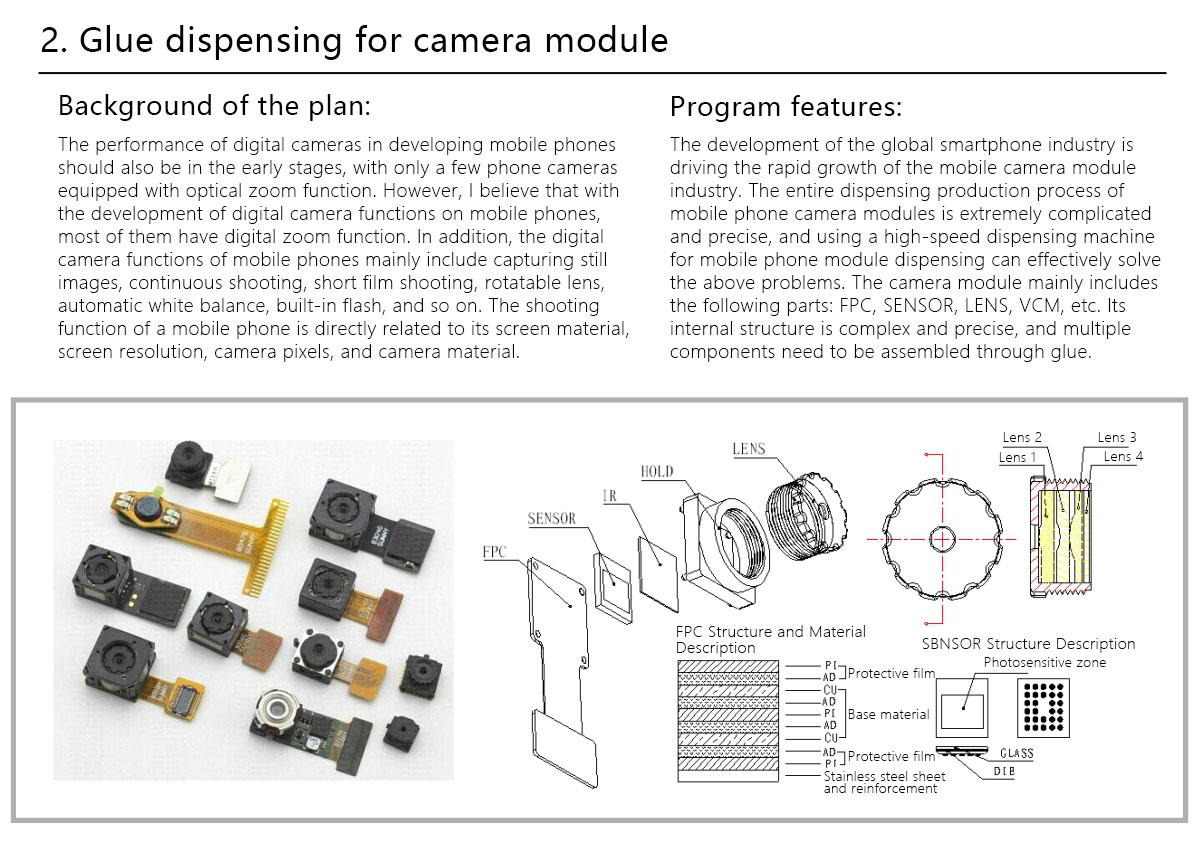

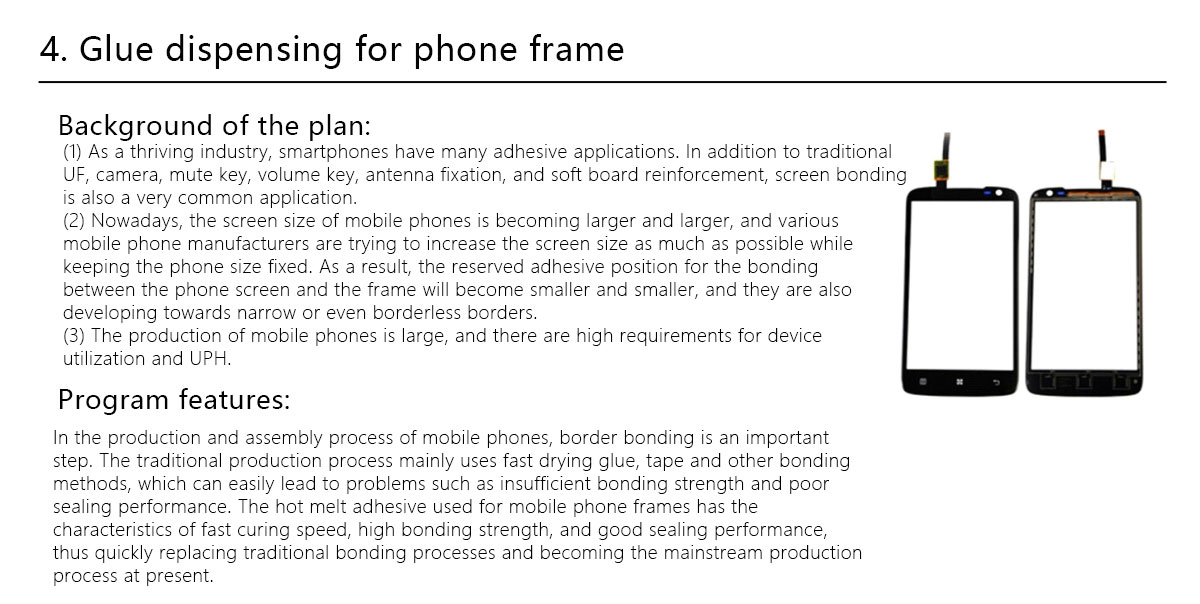

2. Glue dispensing for camera module and fingerprint recognition module.

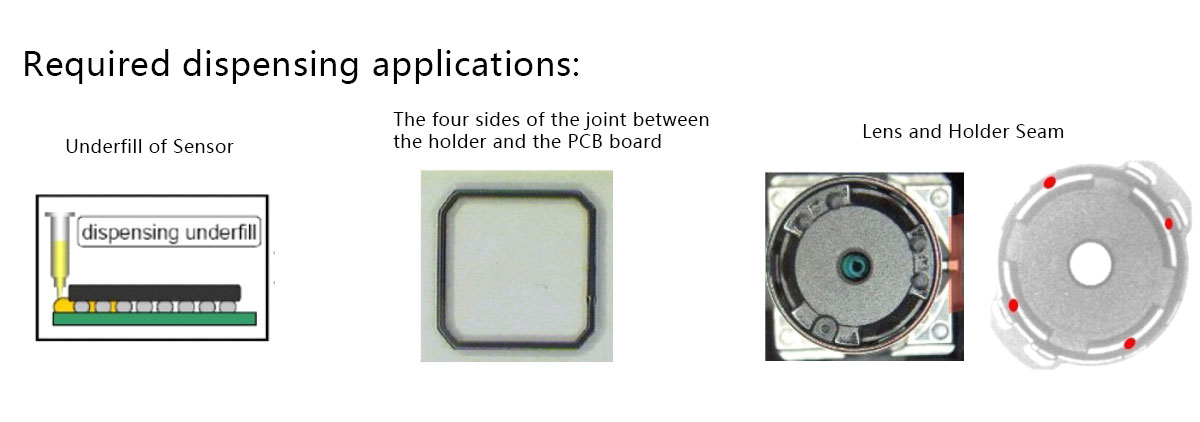

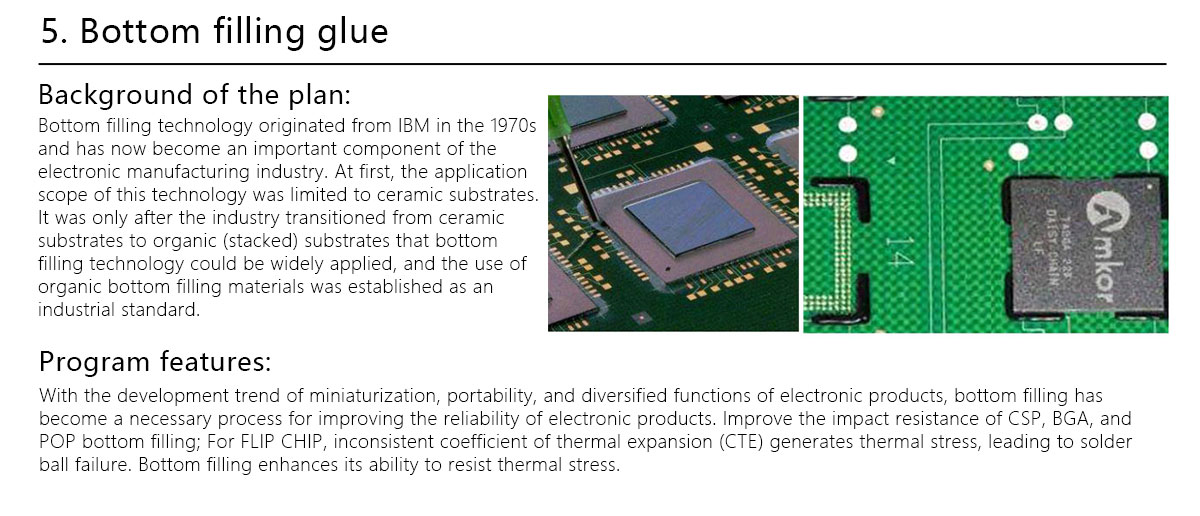

3. Bottom filling and encapsulation of IC chips and components.

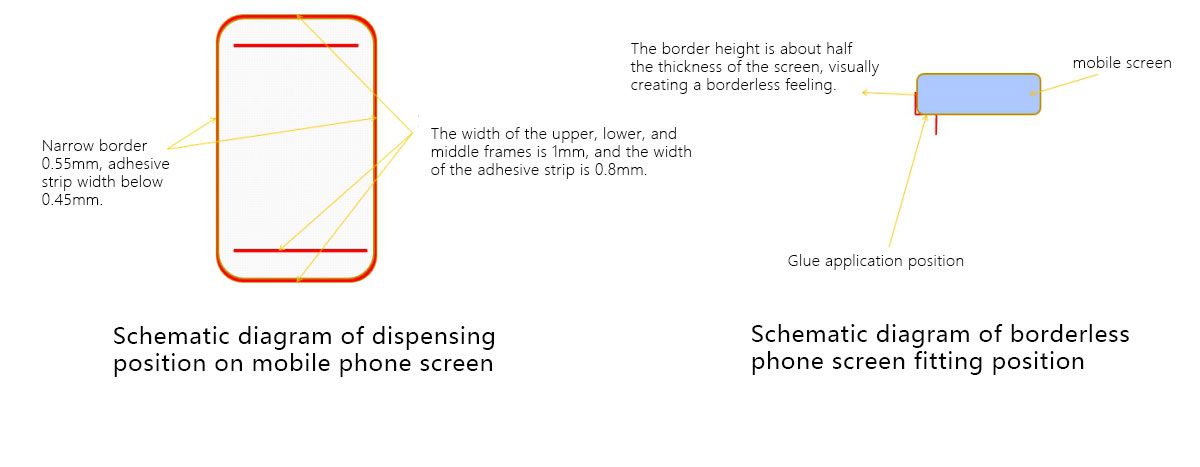

4. Glue on the outer shell frame.

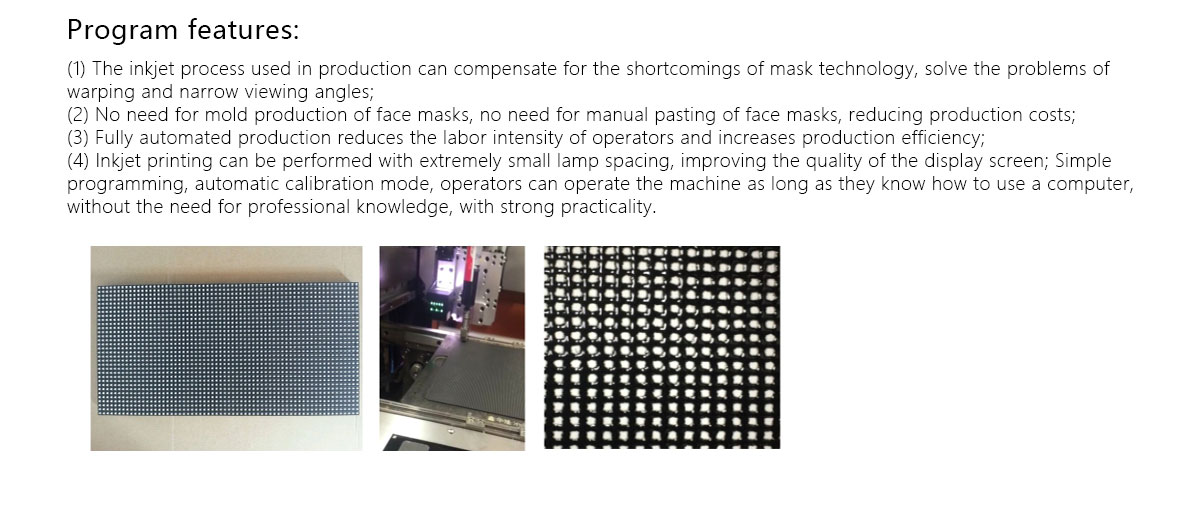

5. Fluorescent powder filling for light-emitting diodes.
6. Red glue, dam enclosure, precision coating, etc.
Product parameters:
| Model | D-780 |
| Performance Parameter |
| Conveyor Height | 900±20mm |
| Delivery Speed | 2-5m/min |
| Delivery Direction | L→R(R→LOptional ) |

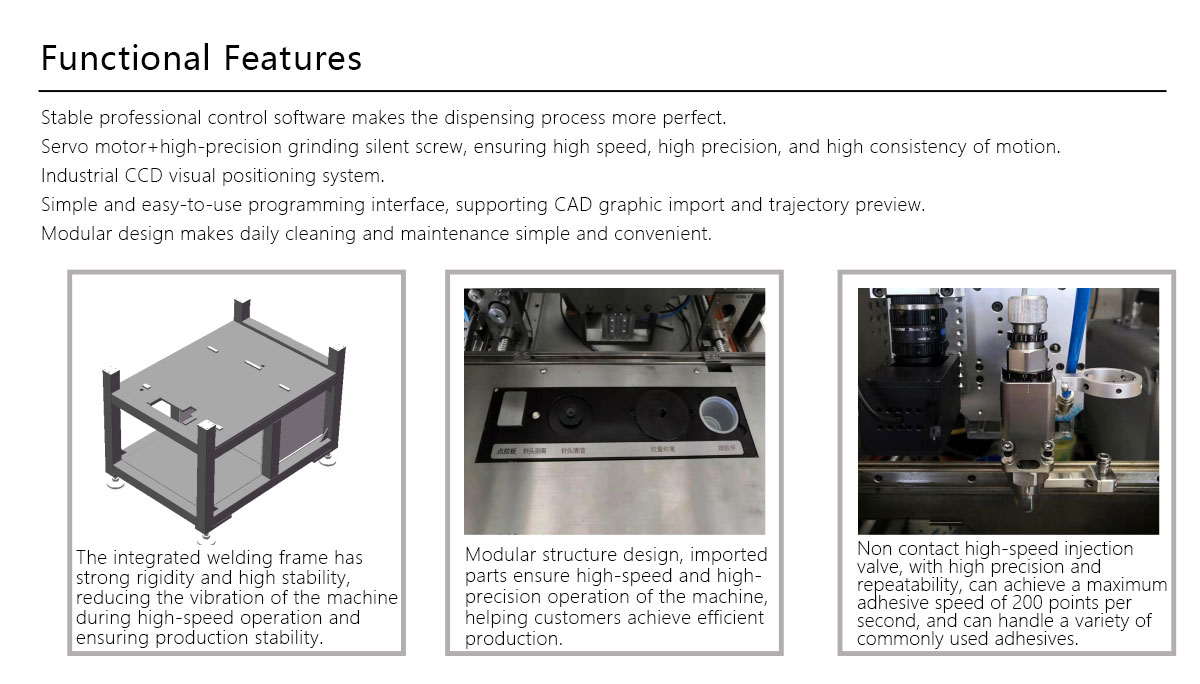

| Dispense Valve | Non-contact injection valve |
| Valve pressure stabilization device | Standard air pressure stabilizer |
| Valve vacuum cleaning device | Standard vacuum cleaning device |
| Valve nozzle heating device | Nozzle heating module |
| Optional List |
| High speed dispensing valve | Ceramic valve, screw valve, two-component valve, etc. |
| Transfer Method | One-stage transportation (two-stage transportation, three-stage transportation) |
| Height Measuring System | Non-contact laser height measurement |
| Weighing System | Microbalance Accuracy 0.01mg、0.1mg |
| Product Heating | Product preheating, heating structure at the bottom of the work area |
| Other Specifications |

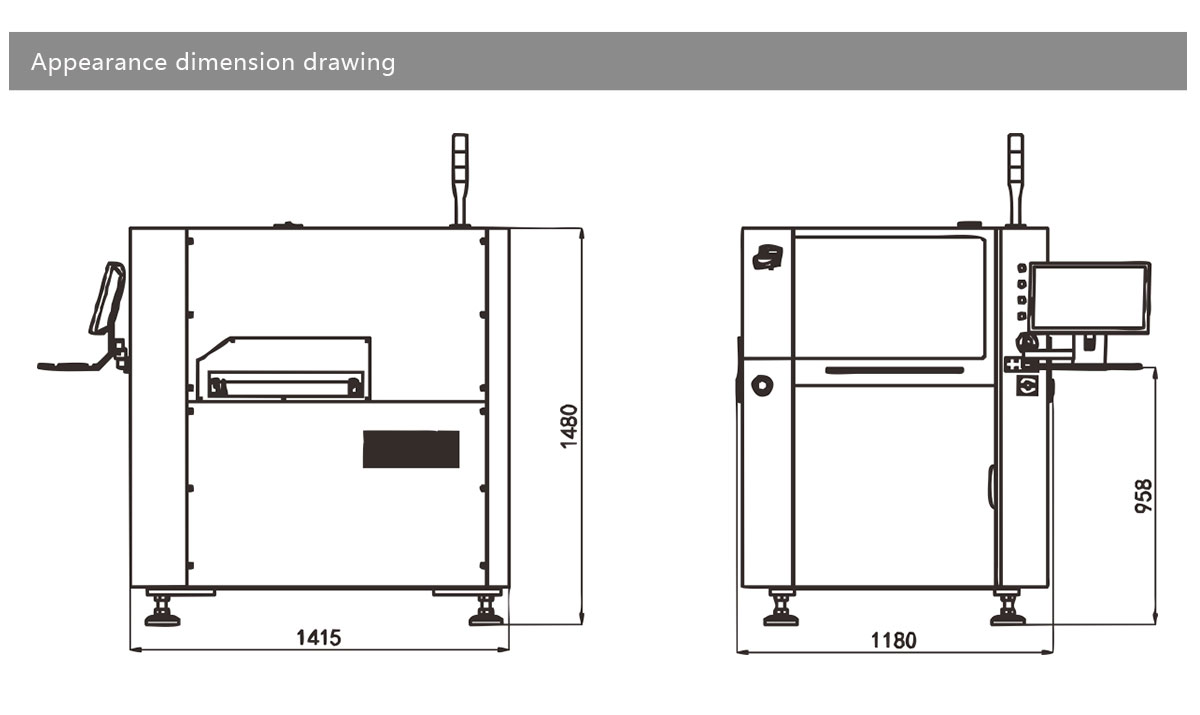

| Exterior Dimension | W1180xH1480xL1415mm(Without tri-color lights, monitor and keyboard) |
| PCB Size | 500mm*500mm |
| Weight | 850kg |
| Air Pressure | 0.6Mpa |
| ElectricAC | AC:220V，50-60HZ |
| Main Powe | 1.5KW |
FAQ:
1.Will you provide on-site support?
Our team of qualified and experienced engineers can provide on-site maintenance and repair support. You can use the online chat box Skype、Whatsapp、 Contact us by phone and email, and we are always on standby to assist you in resolving any issues.
2.Will any training be provided?
We provide a complete training program for all industrial testing equipment, maintenance equipment, picking and placing equipment, reflow soldering equipment, wave soldering, selective soldering equipment, solder paste printing machines, PCB splitting machines and other SMT production line equipment in our Shenzhen factory, and offer on-site training at the customer's location. Our plan aims to provide your engineers, technicians, and machine operators with the necessary knowledge to fully utilize the operation and maintenance of our machines.
3.Where can I buy spare parts?
You can visit our spare parts store to obtain the parts you need, which can be paid by bank transfer/PayPal/credit card. In addition, you can contact us to obtain parts and make payment through bank transfer.
H.F.X - Our Company
About H.F.X:
H.F.X is a leading provider of factory planning solutions and industrial inspection solutions. We have 4 wholly-owned factories that provide professional consulting and services to global customers. We have over 11 years of experience in electronic integrated solutions and industrial testing solutions. We not only provide a complete set of equipment, but also offer comprehensive technical support and services, and provide customers with more reasonable professional advice. We help many clients establish factories in LED, TV, mobile phone, DVB, EMS, and other industries around the world. We will establish factories in LED, TV, mobile phone, DVB, EMS, and other industries around the world. We are trustworthy.
Exhibition：
For SMT factory setup and industrial non-destructive testing, we can provide you with:
1. We provide you with complete SMT solutions and industrial testing solutions
2. We Provide Core Technology With Our Equipments
3. We provide the most professional technical services
4. We have rich experience in establishing SMT factories and industrial testing
5. We can solve any problems related to SMT and industrial testing
H.F.X-780 | SMT Line Online Spray Glue Dispensing Machine
