Product parameters:
| Technology Platform | Standard TYPE-B/C |
| Model | S510B |

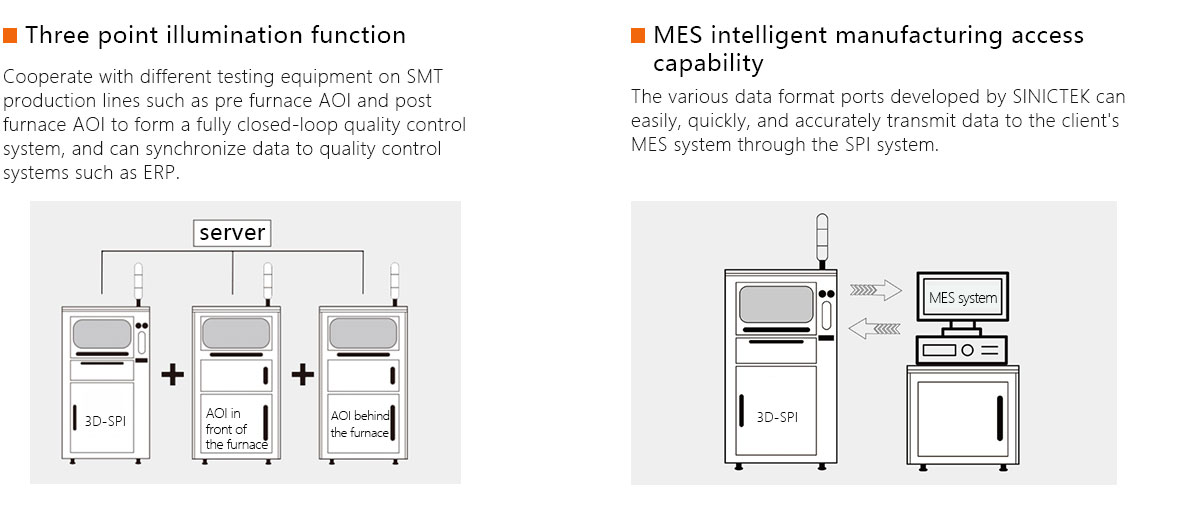

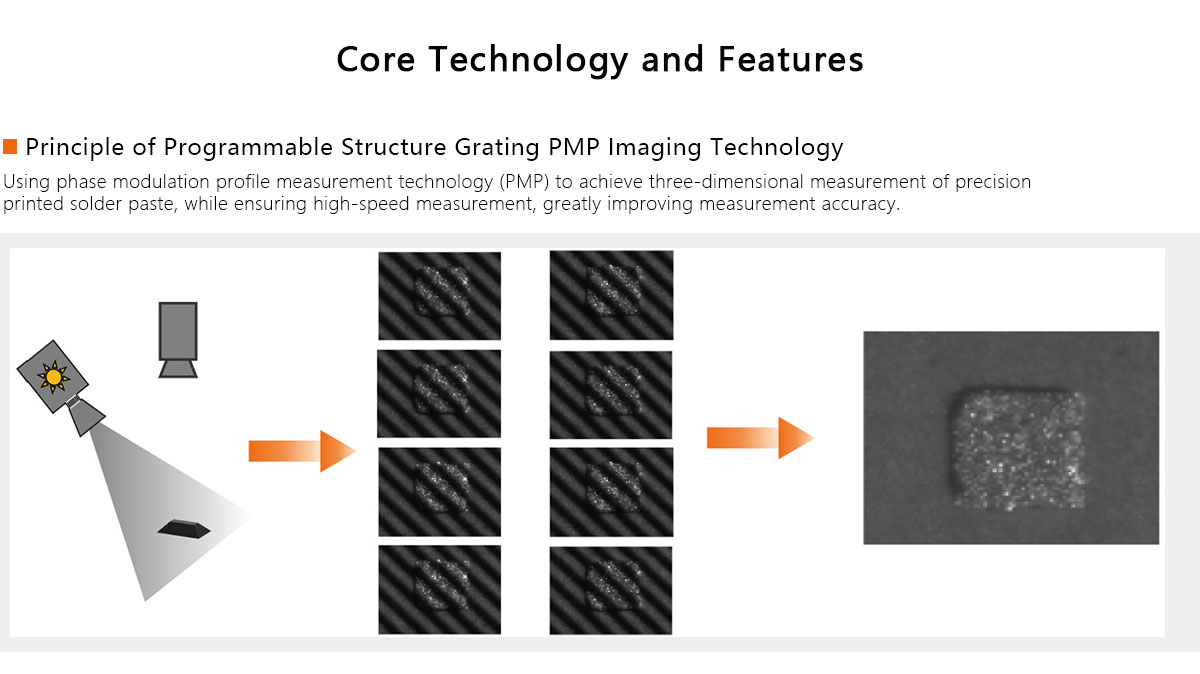

| Measurement Principle | 3D white light PSLM PMP(Programmable Spatial Light Modulation,Phase Measurement Profilometry) |
| Measurements | volume,acreage, height,XY offset, shape |
| Detection of Non-Performing Types | missing print,insufficient tin, excessive tin, bridging, offset, mal-shapes, surface contamination |

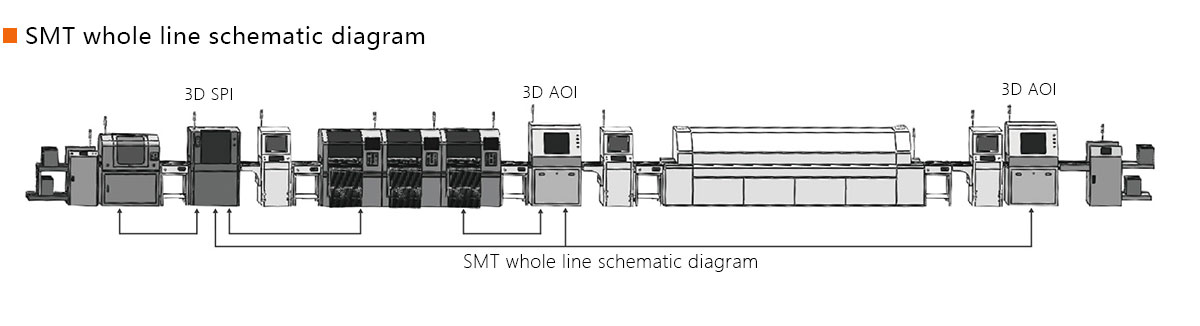

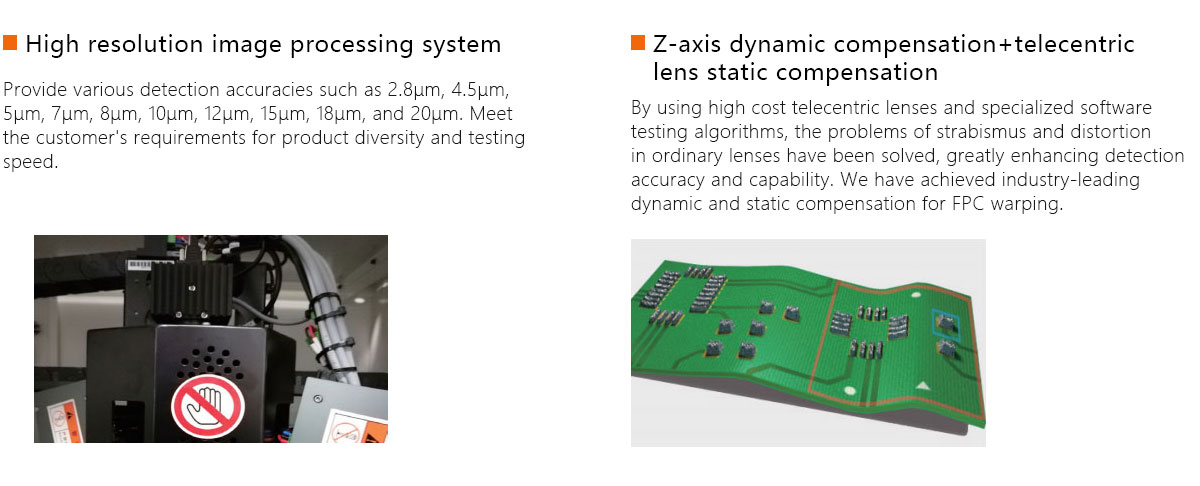

| Lens Resolution | 4.5μm/5μm/6μm/8μm/10μm/12μm/15μm/16μm/18μm/20μm (optional for different camera models) |
| Accuracy | XY (Resolution):10μm |
| Repeatability | height: ≤lμm (4Sigma);volume/area:<1% (4Sigma); |
| Gage R&R | <<10% |
| Inspection Speed | 0.35sec/FOV-0.5sec/FOV |
| Quanlity of Inspection Head | Standard 1,option 2,3 |

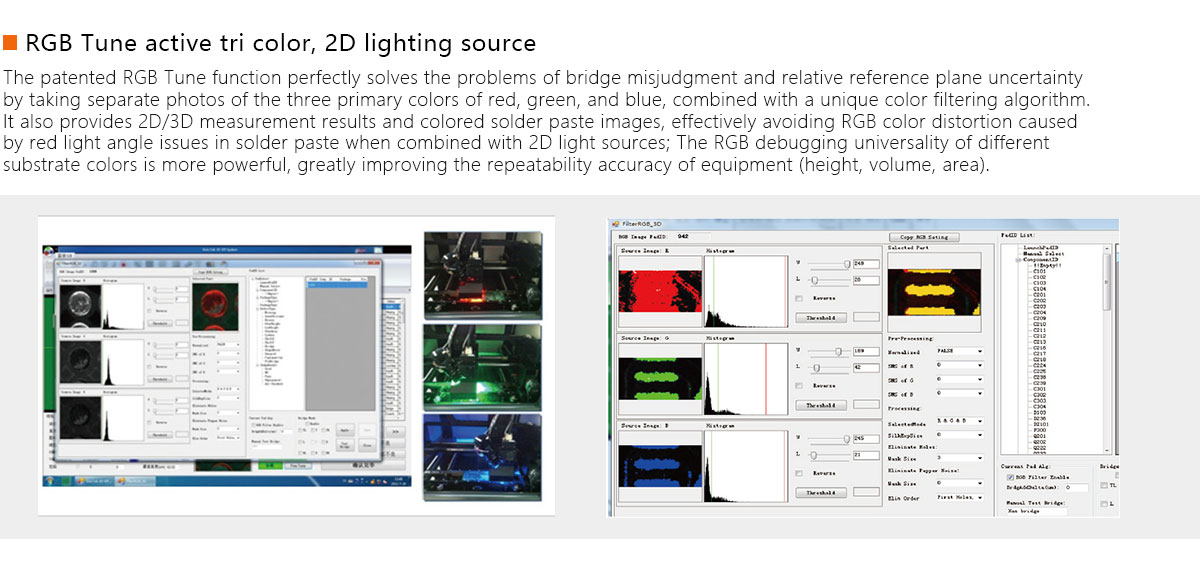

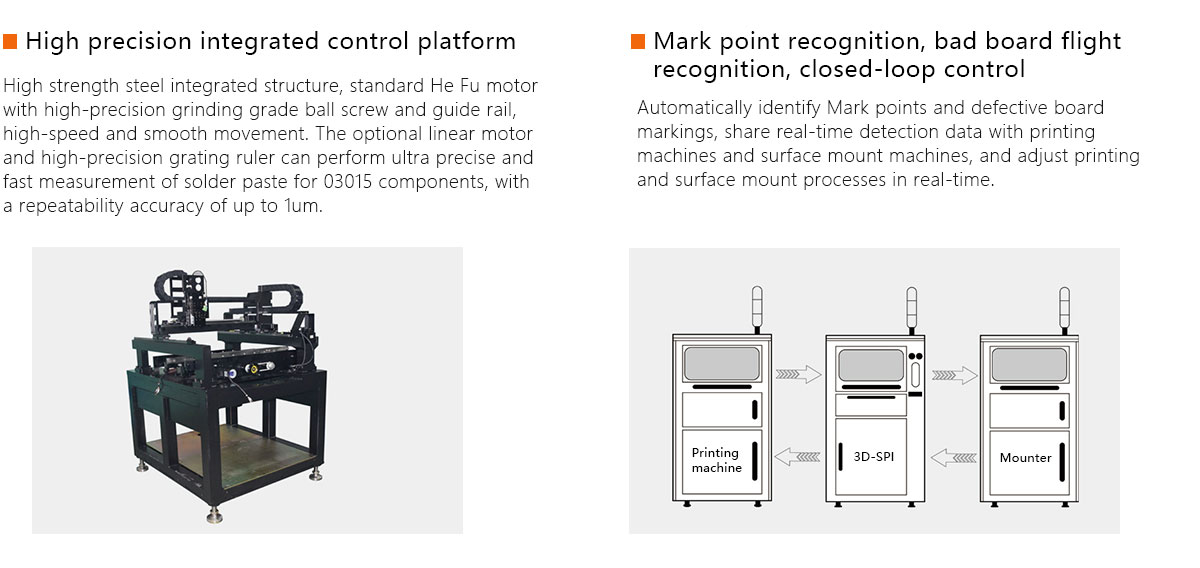

| Mark-point Detection Time | 0.3sec/piece |
| Maximun Meauring Head | ±550μm (±1200μm as option) |
| Maximun Measuring Height of PCB Warp | ±5mm |
| Minimun Pad Spacing | 100μm (pad height of 150μm as reference) 80μm/100μm/150μm/200μm (determined according to actual configuration) |

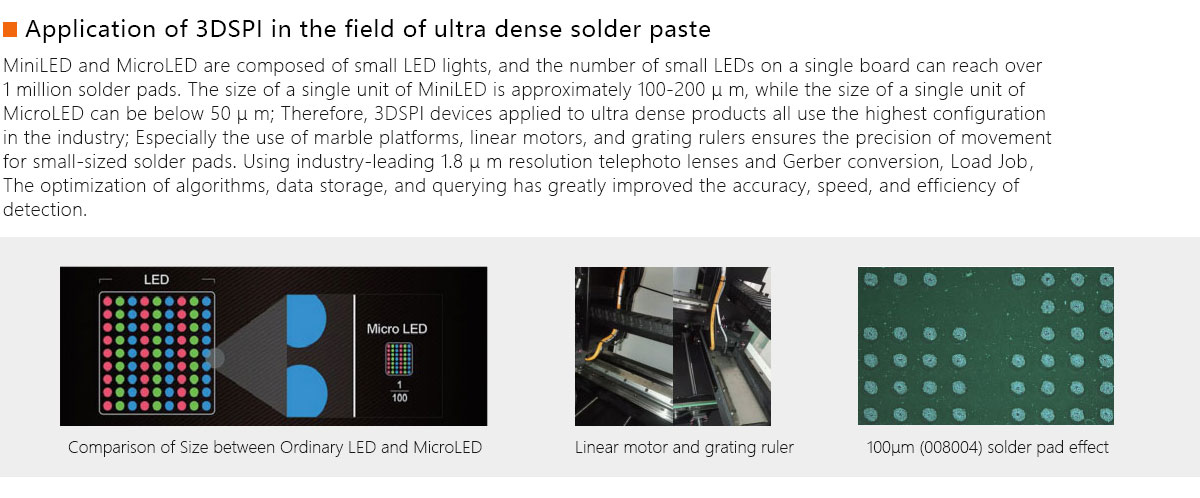

| Minimum element | 01005/03015/008004(option) |
Maximun Loading PCB & Detection Size(X*Y) | 450x500mm |
| Conveyor Setup | front orbit (back orbit as option) |
| PCB Transfer Direction | Left to right or Right to left |
| Conveyor Width Adjustment | manual &automatic |

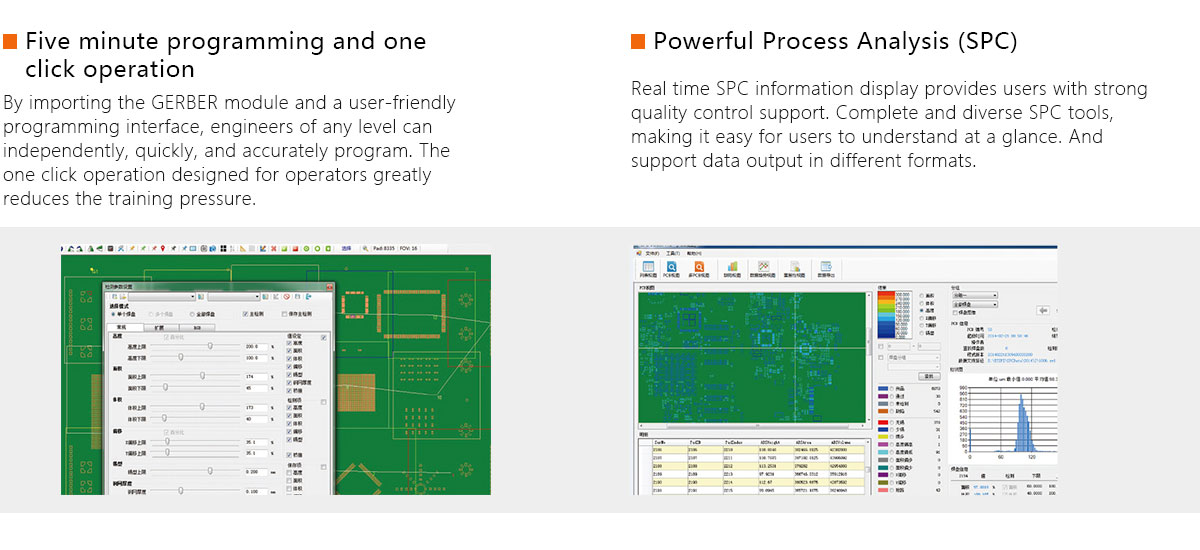

| Engineering Statistics | Histogram; Xbar-RChart;Xbar-SChart; CP&CPK;%Gage Repartability Data;SPIDaily/Weekly/Monthly Reports |
| Gerber & CAD Data Import | support Gerber format (274x，274d),manual Teach model);CADX/Y，Part No., Package Type imput) |
| Operating System Support | Windows 10 Professional(64 bit) |
| Equipment Diemension and Weight | W1000xD1150xH1530mm,965Kg |
| Optional | One person controls more machines、Network SPC(Software only)、1D/2DBarcode scanner,
out-line programming software, UPS continuous power supply |
> Customization can be made according to customer needs.
FAQ:
1.Will you provide on-site support?
Our team of qualified and experienced engineers can provide on-site maintenance and repair support. You can use the online chat box Skype、Whatsapp、 Contact us by phone and email, and we are always on standby to assist you in resolving any issues.
2.Will any training be provided?
We provide a complete training program for all industrial testing equipment, maintenance equipment, picking and placing equipment, reflow soldering equipment, wave soldering, selective soldering equipment, solder paste printing machines, PCB splitting machines and other SMT production line equipment in our Shenzhen factory, and offer on-site training at the customer's location. Our plan aims to provide your engineers, technicians, and machine operators with the necessary knowledge to fully utilize the operation and maintenance of our machines.
3.Where can I buy spare parts?
You can visit our spare parts store to obtain the parts you need, which can be paid by bank transfer/PayPal/credit card. In addition, you can contact us to obtain parts and make payment through bank transfer.
H.F.X - Our Company
About H.F.X:
H.F.X is a leading provider of factory planning solutions and industrial inspection solutions. We have 4 wholly-owned factories that provide professional consulting and services to global customers. We have over 11 years of experience in electronic integrated solutions and industrial testing solutions. We not only provide a complete set of equipment, but also offer comprehensive technical support and services, and provide customers with more reasonable professional advice. We help many clients establish factories in LED, TV, mobile phone, DVB, EMS, and other industries around the world. We will establish factories in LED, TV, mobile phone, DVB, EMS, and other industries around the world. We are trustworthy.
Exhibition：
For SMT factory setup and industrial non-destructive testing, we can provide you with:
1. We provide you with complete SMT solutions and industrial testing solutions
2. We Provide Core Technology With Our Equipments
3. We provide the most professional technical services
4. We have rich experience in establishing SMT factories and industrial testing
5. We can solve any problems related to SMT and industrial testing
H.F.X-S510B | 3D SPI SMT Solder Paste Inspection Machine
