H.F.X-D-650 | Fully automatic LENS dispensing machine

Product parameters:

Model	D-650
Performance   Parameter
Conveyor   Height	900±20mm
Delivery   Speed	2-5m/min
Delivery   Direction	L→R(R→LOptional )

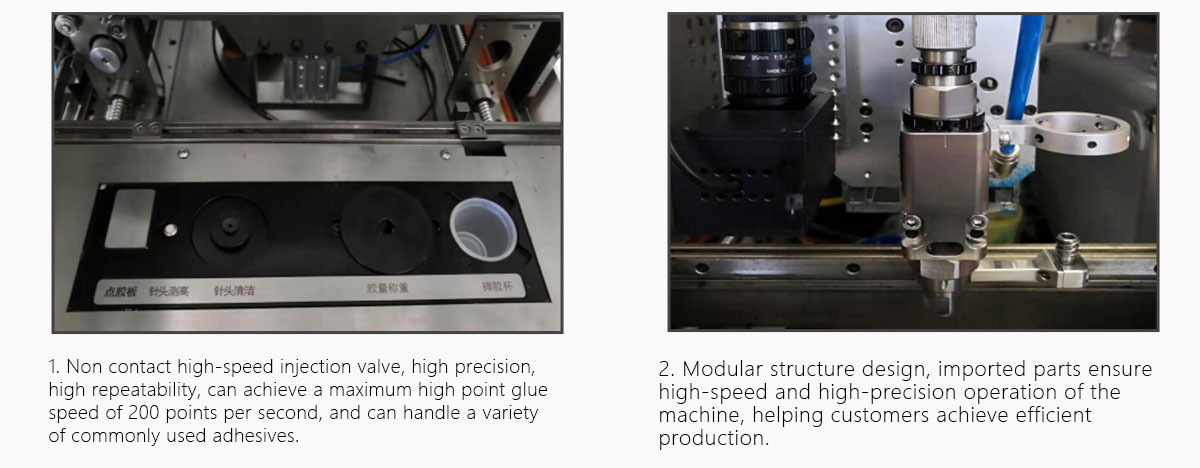

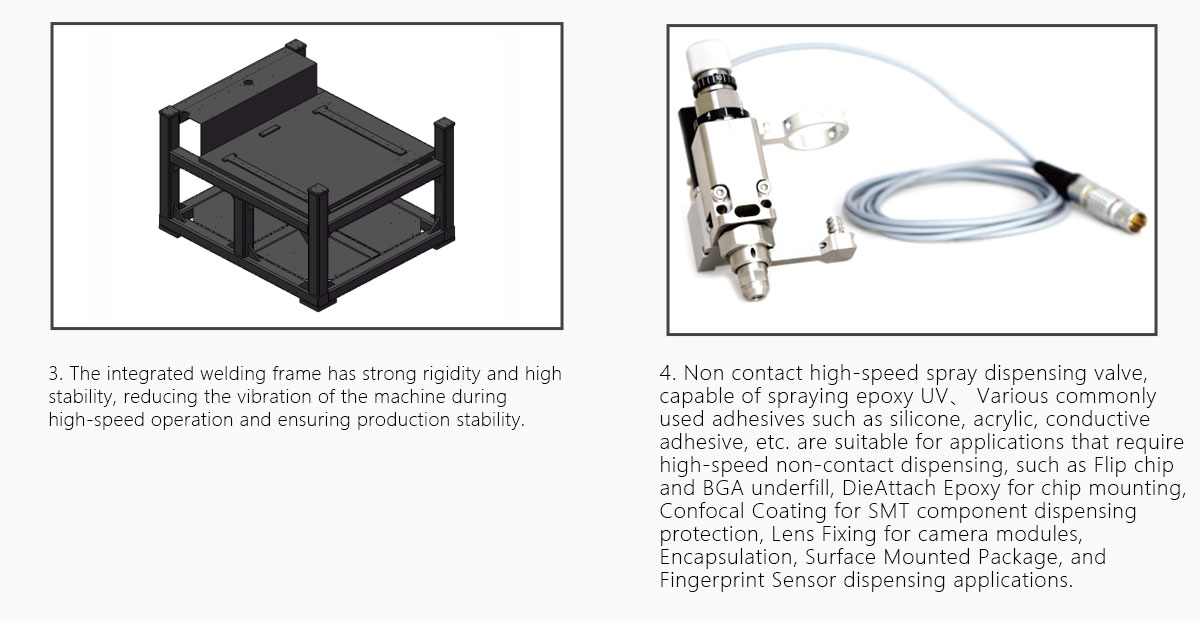

Dispense   Valve	Non-contact injection   valve
Valve   pressure stabilization device	Standard air pressure   stabilizer
Valve vacuum   cleaning device	Standard vacuum   cleaning device
Valve nozzle   heating device	Nozzle heating module
Optional List
High speed   dispensing valve	Ceramic valve, screw   valve, two-component valve, etc.
Transfer   Method	One-stage   transportation (two-stage transportation, three-stage transportation)
Height   Measuring System	Non-contact laser   height measurement
Weighing   System	Microbalance Accuracy   0.01mg、0.1mg
Product   Heating	Product preheating,   heating structure at the bottom of the work area
Other   Specifications
Exterior   Dimension	W1090xH1534xL1290mm(Without   tri-color lights, monitor and keyboard)
PCB Size	600mm*450mm
Weight	750kg
Air Pressure	0.6Mpa
ElectricAC	AC:220V，50-60HZ
Main Powe	1.5KW

FAQ:

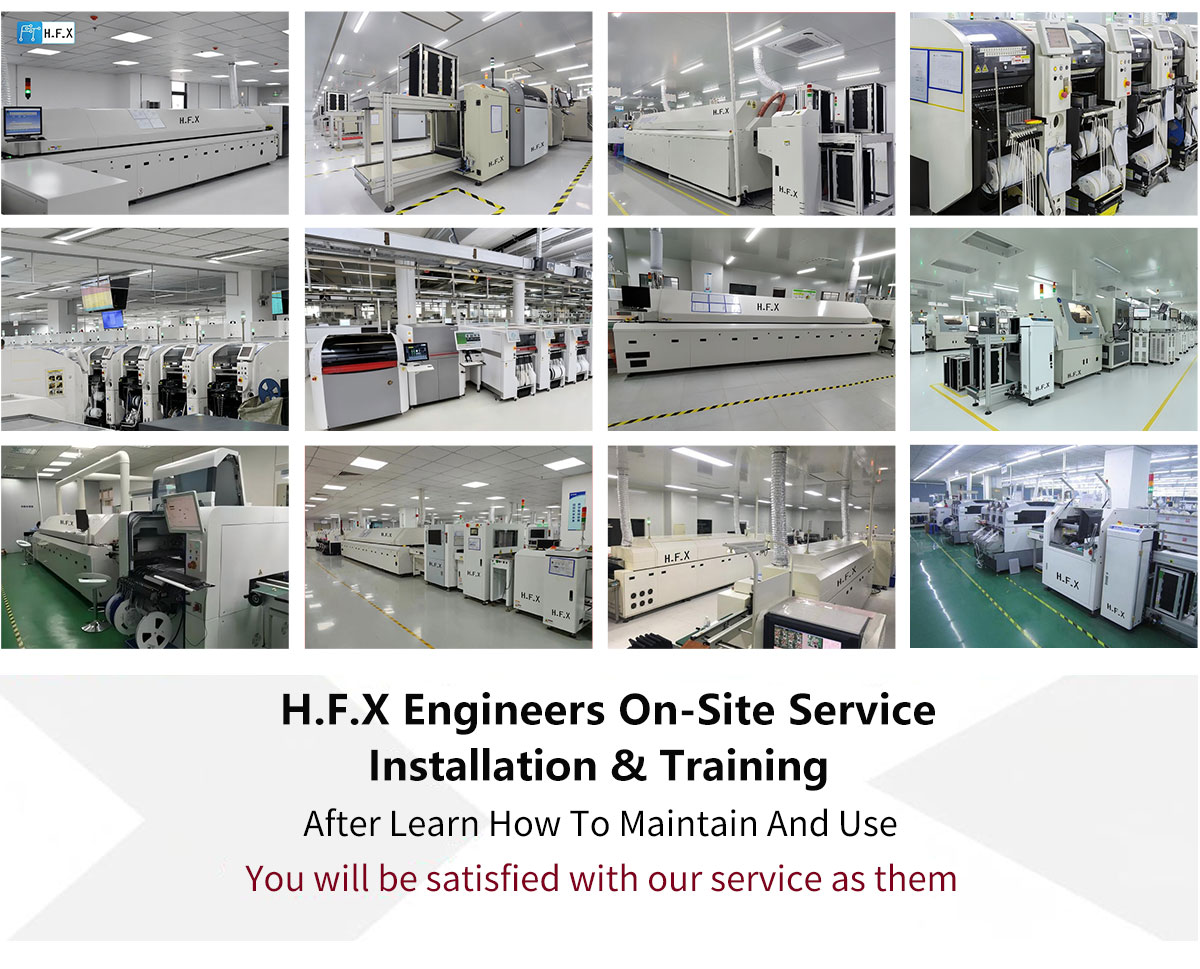

1.Will you provide on-site support?

Our team of qualified and experienced engineers can provide on-site maintenance and repair support. You can use the online chat box Skype、Whatsapp、 Contact us by phone and email, and we are always on standby to assist you in resolving any issues.

2.Will any training be provided?

We provide a complete training program for all industrial testing equipment, maintenance equipment, picking and placing equipment, reflow soldering equipment, wave soldering, selective soldering equipment, solder paste printing machines, PCB splitting machines and other SMT production line equipment in our Shenzhen factory, and offer on-site training at the customer's location. Our plan aims to provide your engineers, technicians, and machine operators with the necessary knowledge to fully utilize the operation and maintenance of our machines.

3.Where can I buy spare parts?

You can visit our spare parts store to obtain the parts you need, which can be paid by bank transfer/PayPal/credit card. In addition, you can contact us to obtain parts and make payment through bank transfer.

H.F.X - Our Company

---

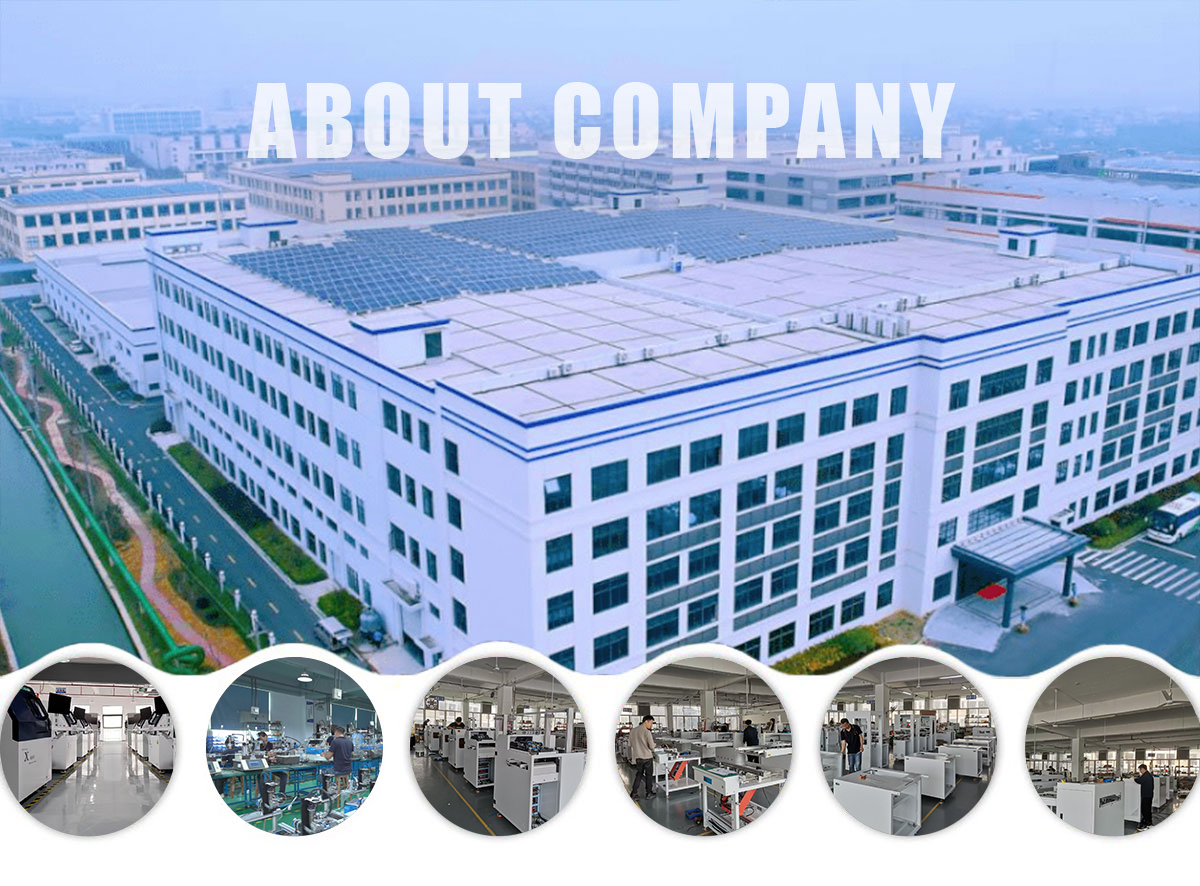

About H.F.X:

---
