H.F.X-AI-510D | Online 2D automatic optical inspection equipment (dual track)

Product parameters:

Model	Dual track online machine / AI-510D
Camera	Standard configuration: 5-megapixel industrial camera (optional: 12   megapixel industrial camera)

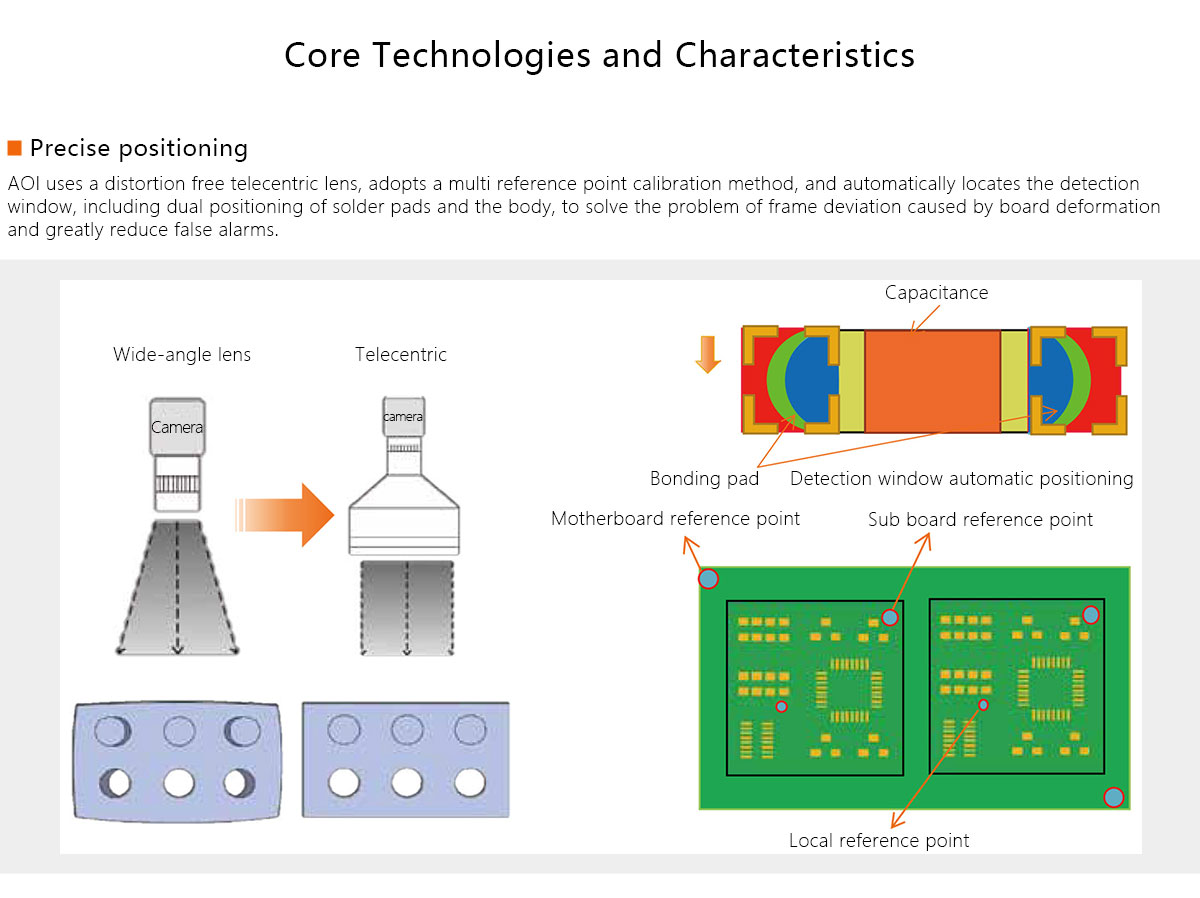

Lens	Telecentric lens

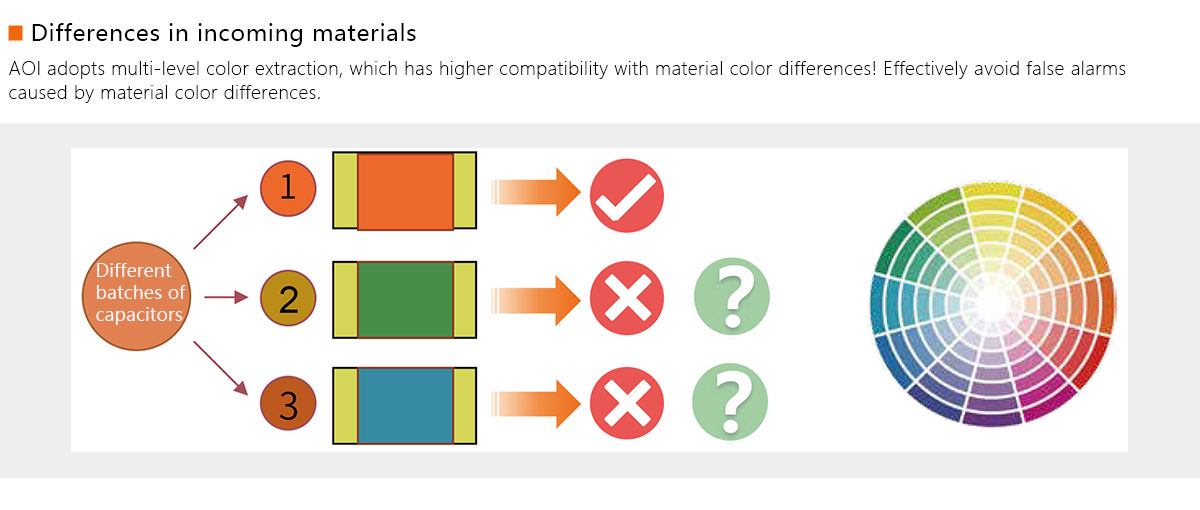

Light source	RGB three-color light
Resolution	Standard configuration: 15μm (optional 10μm)
FOV scope	10μm:24*20mm / 15μm:36*30mm / 25μm:60*50mm
Size of detectable PCB	Monorail transmission: 420mm *   560mm     Dual track transmission: 420mm * 330mm
PCB thickness scope	0.3~5mm
Edge width	3mm
Top/Bottom clear height	Ex-factory standard:TOP:30,BOT:30mm / Maximum adjustable   height:TOP:50,BOT:50mm
Maximum PCB weight	5KG
Inspection speed	200~250ms/FOV
X, Y motion	Servo Motor
Operating system	Windows10 64bit
Power supply	AC220V,50/60Hz
Air pressure	0.5Mpa
Track height	900 ± 20mm
Machine weight	about 750KG
Size	L1800*W1300*H1560mm

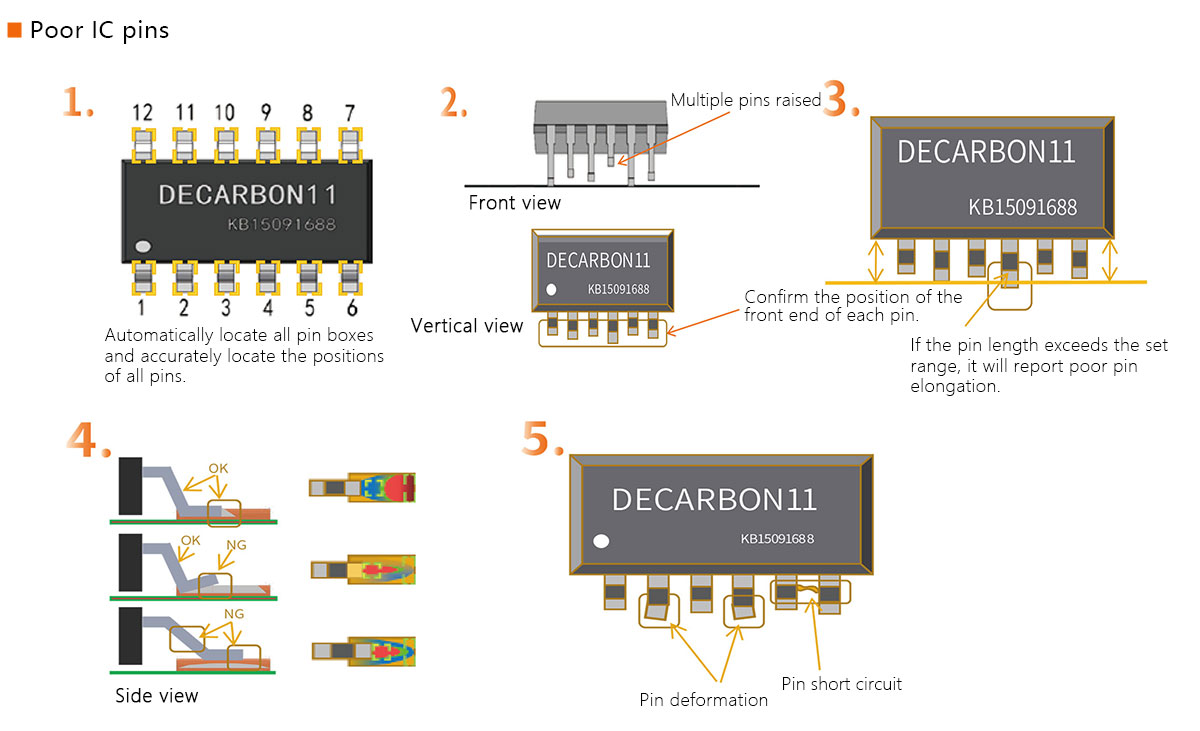

SMT inspection items	Wrong parts, missing parts, reverse, offset, tombstoning, side stand,   flip parts, damaged solder, short circuit,    insufficient solder, false solder,   missing solder, excessive glue, exposed copper,pin warpage, pin deformation
THT inspection items	Nonexistent solder, insufficient solder, excessive solder, cavity, short   circuit, exposed copper, false solder,    buried pins, solder ball, and   contamination

FAQ:

1.Will you provide on-site support?

Our team of qualified and experienced engineers can provide on-site maintenance and repair support. You can use the online chat box Skype、Whatsapp、 Contact us by phone and email, and we are always on standby to assist you in resolving any issues.

2.Will any training be provided?

We provide a complete training program for all industrial testing equipment, maintenance equipment, picking and placing equipment, reflow soldering equipment, wave soldering, selective soldering equipment, solder paste printing machines, PCB splitting machines and other SMT production line equipment in our Shenzhen factory, and offer on-site training at the customer's location. Our plan aims to provide your engineers, technicians, and machine operators with the necessary knowledge to fully utilize the operation and maintenance of our machines.

3.Where can I buy spare parts?

You can visit our spare parts store to obtain the parts you need, which can be paid by bank transfer/PayPal/credit card. In addition, you can contact us to obtain parts and make payment through bank transfer.
