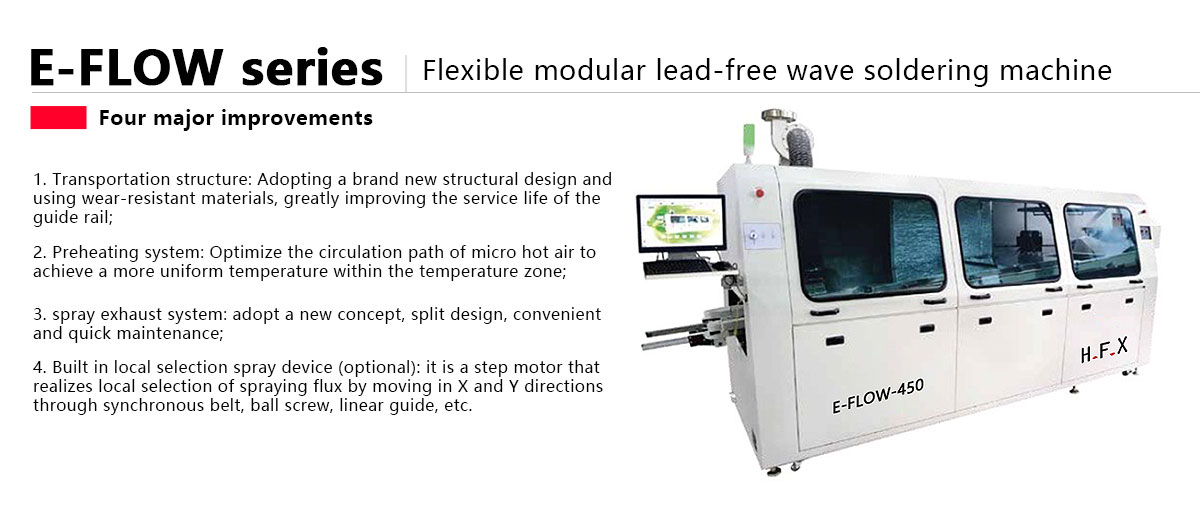

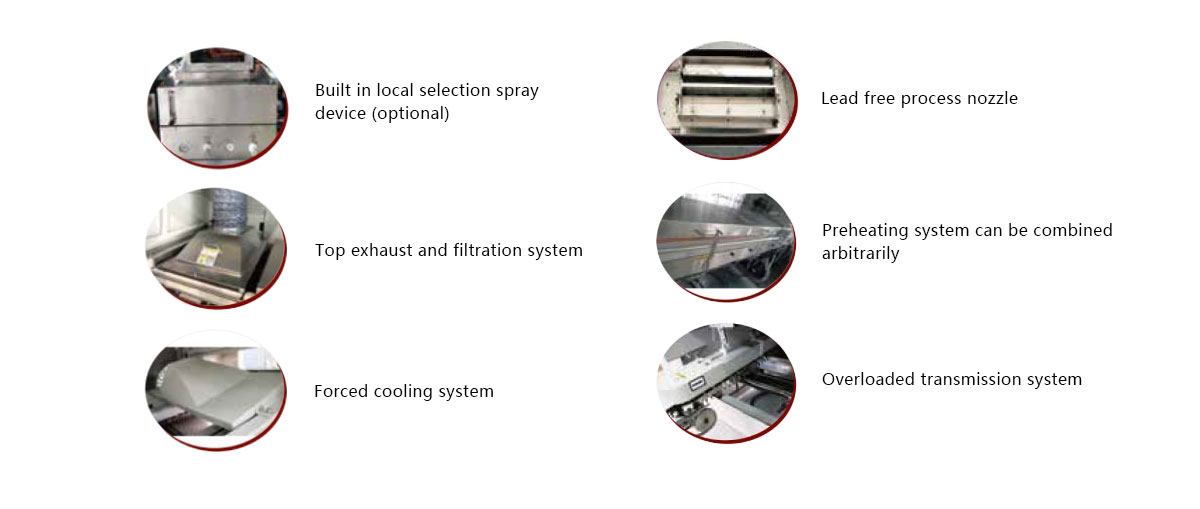

Product features:
1. Transmission system: Direct connection plate structure, specially designed stainless steel chain transmission, unique design of aluminum alloy guide rail, durable and long-lasting; Transportation system: adopting a segmented floating structure to effectively prevent rail deformation;
2. Preheating system: Adopting a drawer type modular energy-saving design, infrared and hot air can be combined arbitrarily, and PID temperature control is used to achieve a temperature control accuracy of ± 2 ℃. The temperature drop between the preheating zone and the welding zone is ≤ 5 ℃;
3. spray system: adopt precision control valve for digital regulation, which is convenient for management. The nozzle movement is controlled by a stepper motor. Automatic constant pressure supply of flux can make the spray flow quickly reach saturation, top air exhaust, filtering system;
4. The tin furnace adopts external heating, and the inner liner of the tin furnace is made of cast iron with anti-corrosion treatment on the inner surface. It is designed with two low flow nozzles and low oxidation capacity;
5. Forced cooling system, ensuring a cooling rate of 4-6 ℃/s (adjustable);
6. PC+PLC control system, Windows 7 operating system, Chinese/English operating interface, automatic storage function for process curves/data, and alarm for low or high flux liquid level; Low tin level alarm;
| Modol NO | E-FLOW | E-FLOW-450 | E-FLOW-610 |

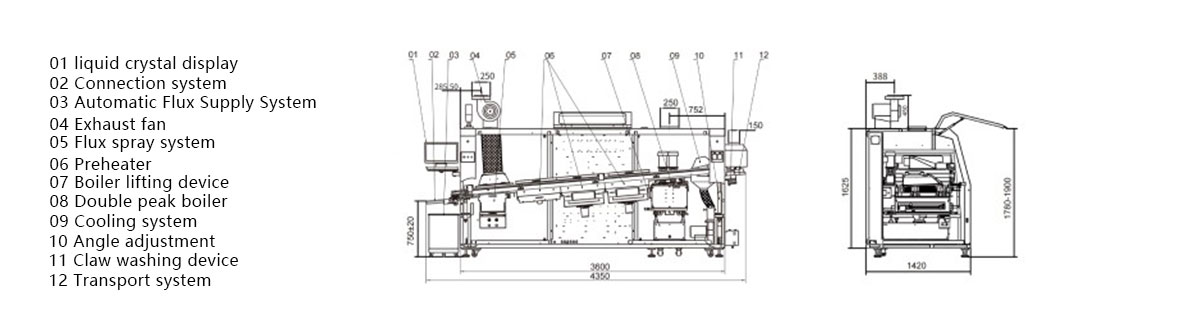

Dimension：LxWxH(mm) | 4350x1420x1750 | 4350*1520*1750 | 4350x1690x1750 |
Weigh | Approx.1600kg | Approx.1750kg | Approx.1950kg |
Power Supply | 3PH 380V 50HZ | 3PH 380V 50HZ | 3PH 380V 50HZ |
Startup Power | 33KW | 33KW | 45KW |
Operation Powr Consumption | Approx.8KW | Approx.8.5KW | Approx.11KW |
Control System | PC+PLC | PC+PLC | PC+PLC |
Spraying movement | Step motor | Step motor | Step motor |
Spray Pressure | 0.2Mpa-0.4Mpa | 0.2Mpa-0.4Mpa | 0.2Mpa-0.4Mpa |
Flux Flow Arrange | Option | Option | Option |
Auto Fill Flux | Standard | Standard | Standard |
Exhaust | Top exhaust | Top exhaust | Top exhaust |
ExhaustDucting Diameter(mm) | Φ250 | Φ250 | Φ250 |
Exhaust tan power | 750W | 750W | 750W |
Preheating Mode | Convection / IR emitter | Convection / IR emitter | Convection / IR emitter |
Control Mode | PID | PID | PID |
Preheating Zone Number | 3 | 3 | 3 |
Preheating Length(mm) | 1800 | 1800 | 1800 |
Preheating Temperature | Room temperature~200℃ | Room temperature~200℃ | Room temperature~200℃ |
Warm-upTime(min) | Approx.12min(seting：150℃) | Approx.12mn(setng：150℃) | Approx.12min(setting：150℃) |
Blower Motor | 150W 3PH 220VAC | 150W 3PH 220VAC | 250W 3PH 220VAC |
PCB Width(mm) | 50~350 | 50~450 | 50-610 |
Convoyor Direction | L-R(Option：R-L) | L-R(Option：R-L) | L-R(Opton：R-L) |
Conveyor Speed(mm/min) | 500-1800 | 500-1800 | 500-1800 |
Conveyor Height(mm) | 750±20 | 750±20 | 750±20 |
Available Component Heigh (mm) | Top120,Bottom15 | Top120,Bottom15 | Top120,Bottom15 |
Conveyor Speed Control Mode | Closed loop stepless speed regulationg Inverter | Closed loop stepless speed regulationg Inverter | Closed loop stepless speed regulationg Inverter |
Fingers | Spring Pressing Finger/D-40Type Fingor/Double-hook Finger/Heavy type double hook f inger,Options | Heavy type double hook f inger/ | |
| Opt on：Special jig for fixture | |||
Conveyor Angle | 4-7” | 4-7° | 4-7° |
Type of solder Pot | Motor drive | Motor drive | Motor drive |
Solder Pot Material | Casting Iron | Casting Iron | Casting Iron |
Wave Height Adjustment | In verte Approx：Digital Control by PC | ||
Cooling Method | Air Cooling Option：Water cooing | ||
Heater Power | 13.5KW | 13.5KW | 18KW |
Solder Pot Temperature | 300℃ | 300℃ | 300℃ |
Solder Pot Capacity | Approx 480kg | Approx.550kg | Approx.640kg |
Wave Drive Power | 180W*2 3PH 220VAC | 180W*2 3PH 220VAC | 180W*2 3PH 220VAC |
Solder Pot Warm-up Time | Approx.150min(seting：250℃) | Approx.150min(setting：250℃) | Approx.150min(setting：250℃) |
Temperature Control Mode | PID | PID | PID |
Finger Cleaning System | Brush | Brush | Brush |
