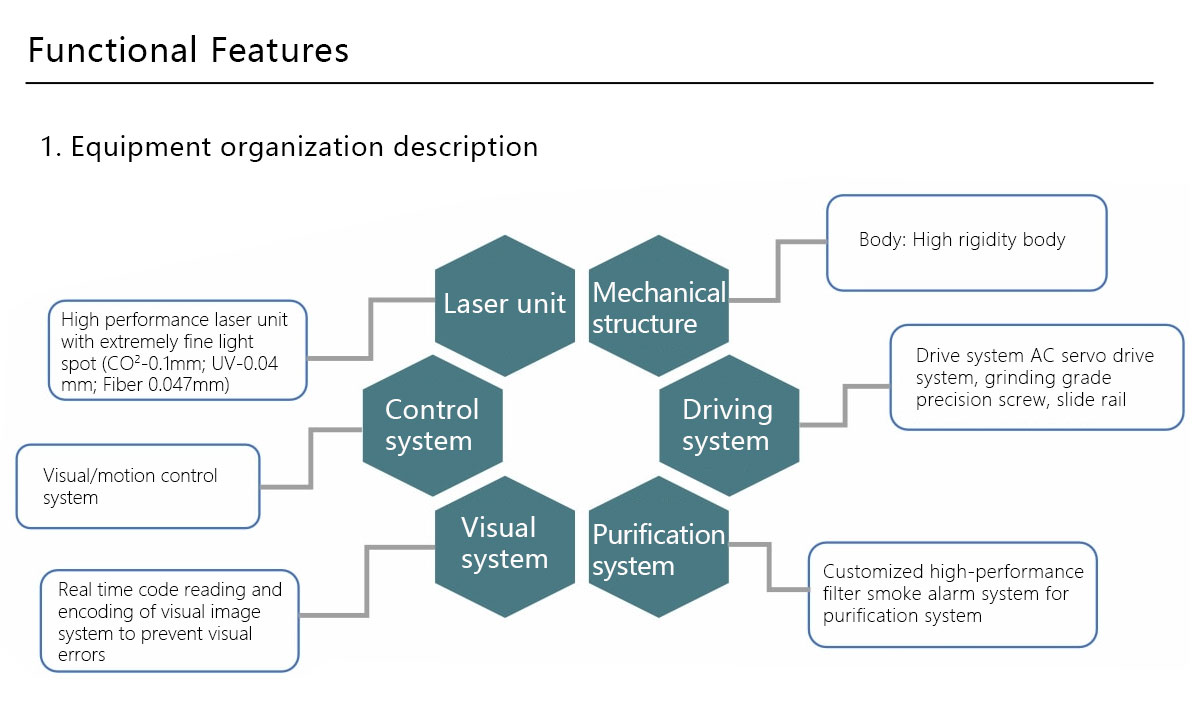

Product Parameters:
| Basic Parameters |
| Power demands | AC110~240V 8A 50/60HZ（Customization supported） |
| Air pressure demand | 90psi（6bar) |
| Overall dimensions | L1400xW1400xH1450mm |
| Total weight | 800Kg |
| Maximum board size (XxY) | 900mm x 500mm (can allocate 1200mm) |
| Minimum board size (XxY) | 80mmx80mm |
| PCB Thickness | 0.8mm~6mm |
| Warpage | ≤1% Diagonal |
| Maximum board weight | 5Kg |
| Gap at the edge of the board | Construct up to 4mm |
| Maximum bottom gap | 20mm |
| Transmission speed | 1200mm/s(Max) |
| The transmission height above the ground | 900±40mm |
| Direction of transmission track | Left - right, right - left, left - left, right - right |
| Transmission method | One segment track |
| PCB clamping method | Double side roof mode |
| Optional items |

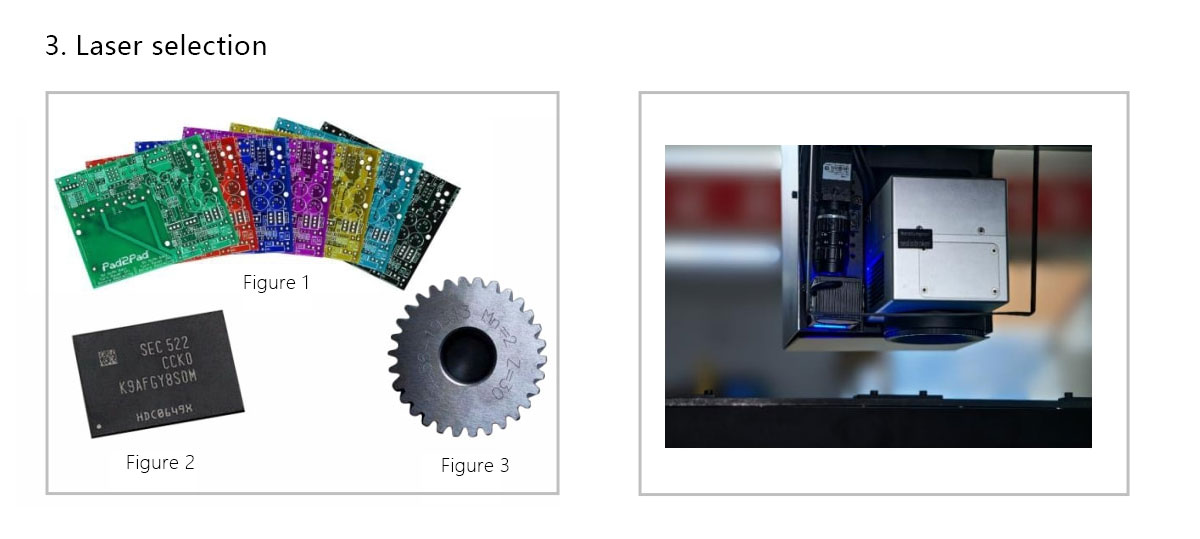

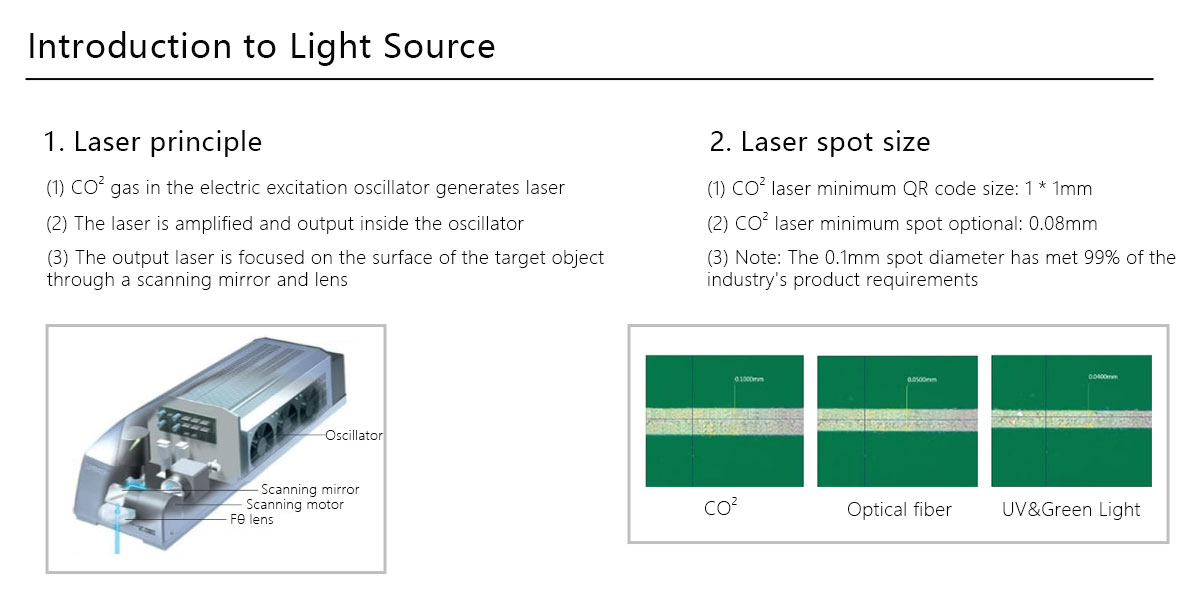

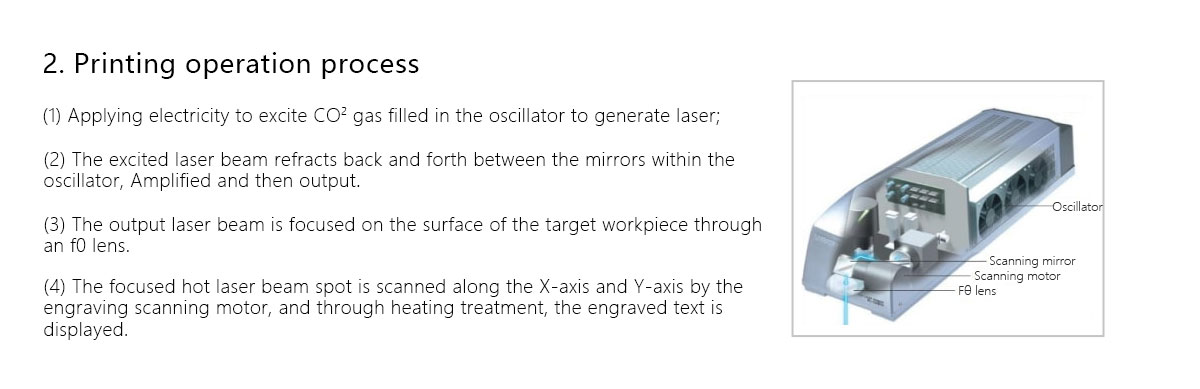

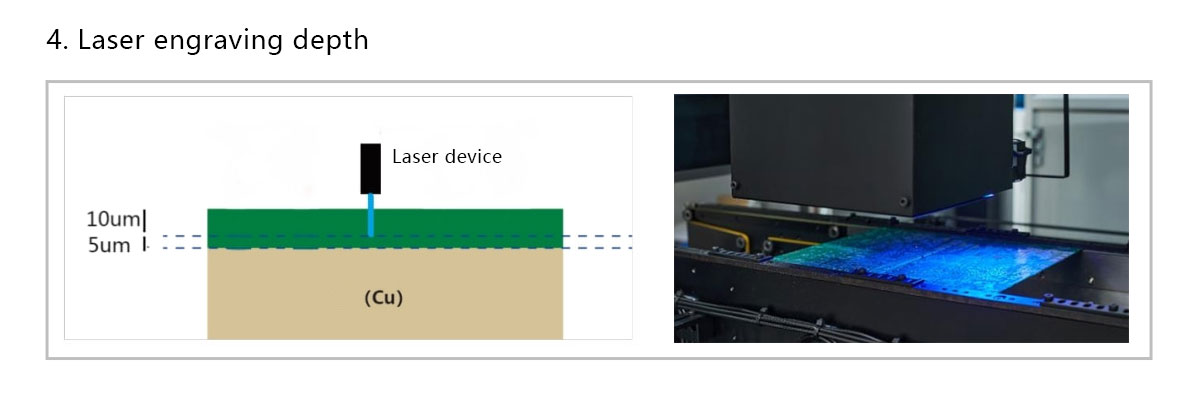

| Laser type | CO2 | UV |
| Laser wavelength | 10.64µm | 355nm |
| Laser spot diameter | 3mm | 0.5mm |
| Carving area | 50x50/70x70mm |
|
| Type of Text | English capitalization, numbers, text, symbols, etc |

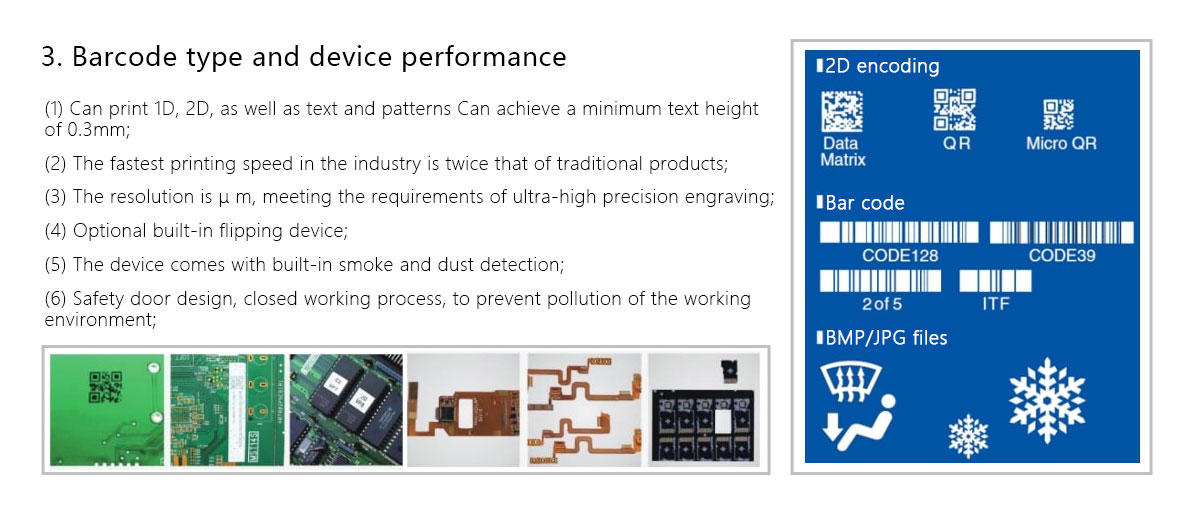

| Barcode | CODE39、CODE128、ITF、NW-7、JAN(EAN)UPC |
| QR code | QR Code, Micro QR Code, DM Code, Data Matrix, GS1 Data Matrix |
| Image data | DXF、BMP、HPGL、JPEG、AI、EPS |
| Image parameter |
| Field of View (FOV) | 12mmx12mm |
| Motion parameters |
| Positioning accuracy of X, Y, and Z axes | X Y:±20µm@3σ Z:±10µm@3σ |
| X Y Z repeatability positioning accuracy | X Y:±10.0µm@3σ Z:±5µm@3σ |
| Maximum acceleration | 1200mm/s(XY) |
| Acceleration | 1.0G |
| Drive system | Servo+motor (X Y) |
> Customization can be made according to customer needs.
FAQ:
1.Will you provide on-site support?
Our team of qualified and experienced engineers can provide on-site maintenance and repair support. You can use the online chat box Skype、Whatsapp、 Contact us by phone and email, and we are always on standby to assist you in resolving any issues.
2.Will any training be provided?
We provide a complete training program for all industrial testing equipment, maintenance equipment, picking and placing equipment, reflow soldering equipment, wave soldering, selective soldering equipment, solder paste printing machines, PCB splitting machines and other SMT production line equipment in our Shenzhen factory, and offer on-site training at the customer's location. Our plan aims to provide your engineers, technicians, and machine operators with the necessary knowledge to fully utilize the operation and maintenance of our machines.
3.Where can I buy spare parts?
You can visit our spare parts store to obtain the parts you need, which can be paid by bank transfer/PayPal/credit card. In addition, you can contact us to obtain parts and make payment through bank transfer.
H.F.X - Our Company
About H.F.X:
H.F.X is a leading provider of factory planning solutions and industrial inspection solutions. We have 4 wholly-owned factories that provide professional consulting and services to global customers. We have over 11 years of experience in electronic integrated solutions and industrial testing solutions. We not only provide a complete set of equipment, but also offer comprehensive technical support and services, and provide customers with more reasonable professional advice. We help many clients establish factories in LED, TV, mobile phone, DVB, EMS, and other industries around the world. We will establish factories in LED, TV, mobile phone, DVB, EMS, and other industries around the world. We are trustworthy.
Exhibition：
For SMT factory setup and industrial non-destructive testing, we can provide you with:
1. We provide you with complete SMT solutions and industrial testing solutions
2. We Provide Core Technology With Our Equipments
3. We provide the most professional technical services
4. We have rich experience in establishing SMT factories and industrial testing
5. We can solve any problems related to SMT and industrial testing
H. F.X-LM850 Type | PCB Online Laser Marking Machine
