Product Introduction:
The Decan Line maximizes productivity in connection with the T-solution, an optimized software for integrated management, and introduces stable quality.
DECAN L2 is optimized for the placement of odd-type parts as well as LEDs and LED lenses
SAMSUNG Used Pick and Place Machine
Advance chip mounter
Fast & flexible pick and place machine
Multi-functional SMT placement
Fast flexible pick & place machine
Used DECAN L2 Advanced Multi-Functional Placer
▶ Speed : 56,000 CPH (Optimum)
▶ Structure : 2 Gantry x 6 Spindles/Head
▶ Accuracy : ±40μm Cpk≥1.0 (0402 Chip)
±30μm Cpk≥1.0 (IC)
▶ Parts Size : 0402~□55mm, L75 (H25mm)
▶ PCB Size : L510xW460mm (Standard)
L1,200xW460mm (Option)
▶ Wide Part Handling Capability
▶ Various PCB Transfer Systems
▶ Verified Production History Management Solution
▶ High Speed Placement
| Model | DECAN S2 | DECAN F2 | DECAN L2 |
| Of Spindles | 2 Gantryx10 Spidles/ Head | 2 Gantryx10 Spidles/ Head | 2 Gantryx6 Spidles/ Head |
| Placement Speed | 92,000 CPH (Optimum) | 80,000 CPH (Optimum) | 56,000 CPH (Flying Vision,Optimum) |
| Vison | Flying Vision | Flying Vision Stage Vision (Optimun) |
| Placement Accuracy | ±28μm Cpk≥1.0 | ±40μm Cpk≥1.0 |
|
| Component Range | 03015 ~ 12mm(H10mm) | 0402(01005) ~ 16mm(H10mm) | 0402(01005) ~ 21mm(H12mm) |
| PCB Size | 50x40~510x460mm (standard) ~610x460mm(Option), ~740x460(Option) ~810x460mm(Option), ~1200x460(Option) |
| Conveyor Configurations | Standard : 1-2- 1 Option : 1-2-2/2-2-2/2-2-1/1-1-1 Factory Option : Single Conveyor (Jedec Tray 2ea) |
| Feeder Capacity | 120ea (8mm) |
| Power | Voltage : 3 phase AC200/208/220/240/380/415V ±10% Frequency : 50/60Hz Power Consumption : Max. 5.0kVA |
| Air Consumption | 50Nl/min |
| Weight | About 1,800kg |

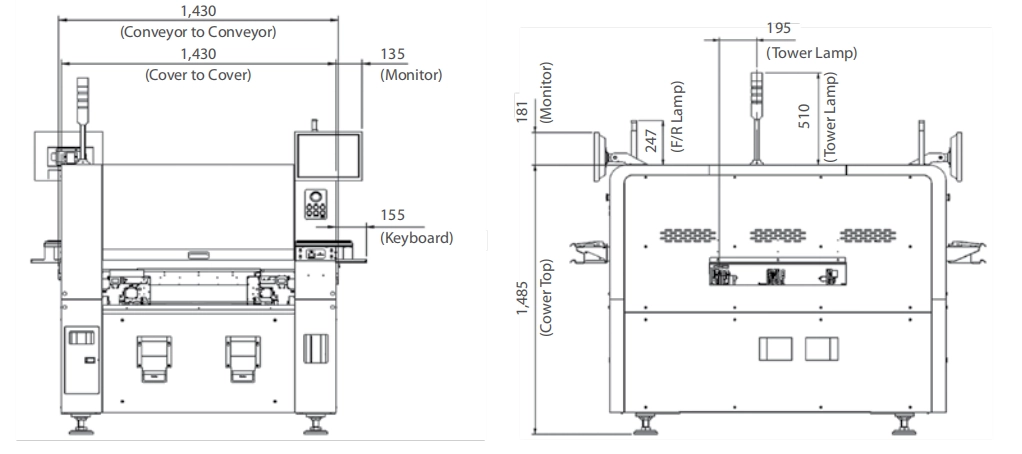

| External Dimensions (mm) | 1,430(L) x 1,740(D) x 1,485(H) |
* Under optimum condition of specified by HANWHA TECHWIN.
FAQ:
1. What does a SMT machine do?
A Surface Mount Technology (SMT) machine, also known as a pick-and-place machine, is used in electronics manufacturing to automatically place surface mount components (SMDs) onto printed circuit boards (PCBs). It accurately picks up components and positions them on the PCB for soldering.
2. What does SMT machine stand for?
SMT stands for "Surface Mount Technology." It refers to the process of mounting electronic components directly onto the surface of a PCB, as opposed to through-hole technology (THT), where components have leads that go through holes in the PCB.
3. What is SMT process?
The SMT process is a modern electronics assembly method in which electronic components are mounted directly onto the surface of a PCB. This process involves applying solder paste to the PCB, using a pick-and-place machine to accurately position SMD components, and then reflow soldering to create electrical connections.
4. What are the methods of SMT quality control?
SMT quality control methods include visual inspection, solder paste inspection, automated optical and X-ray inspection, functional testing, and environmental testing to ensure reliable electronic assemblies.
H.F.X - Our Company
About H.F.X:
H.F.X is a leading provider of factory planning solutions and industrial inspection solutions. We have 4 wholly-owned factories that provide professional consulting and services to global customers. We have over 11 years of experience in electronic integrated solutions and industrial testing solutions. We not only provide a complete set of equipment, but also offer comprehensive technical support and services, and provide customers with more reasonable professional advice. We help many clients establish factories in LED, TV, mobile phone, DVB, EMS, and other industries around the world. We will establish factories in LED, TV, mobile phone, DVB, EMS, and other industries around the world. We are trustworthy.
Exhibition：
For SMT factory setup and industrial non-destructive testing, we can provide you with:
1.We provide you with complete SMT solutions and industrial testing solutions
2. We Provide Core Technology With Our Equipments
3. We provide the most professional technical services
4.We have rich experience in establishing SMT factories and industrial testing
5. We can solve any problems related to SMT and industrial testing
