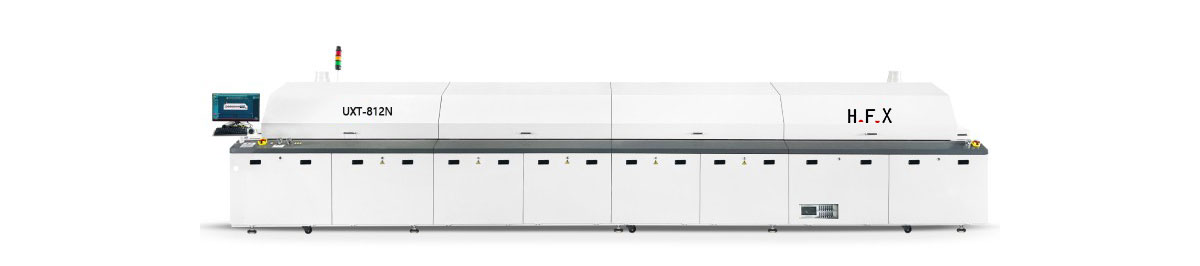

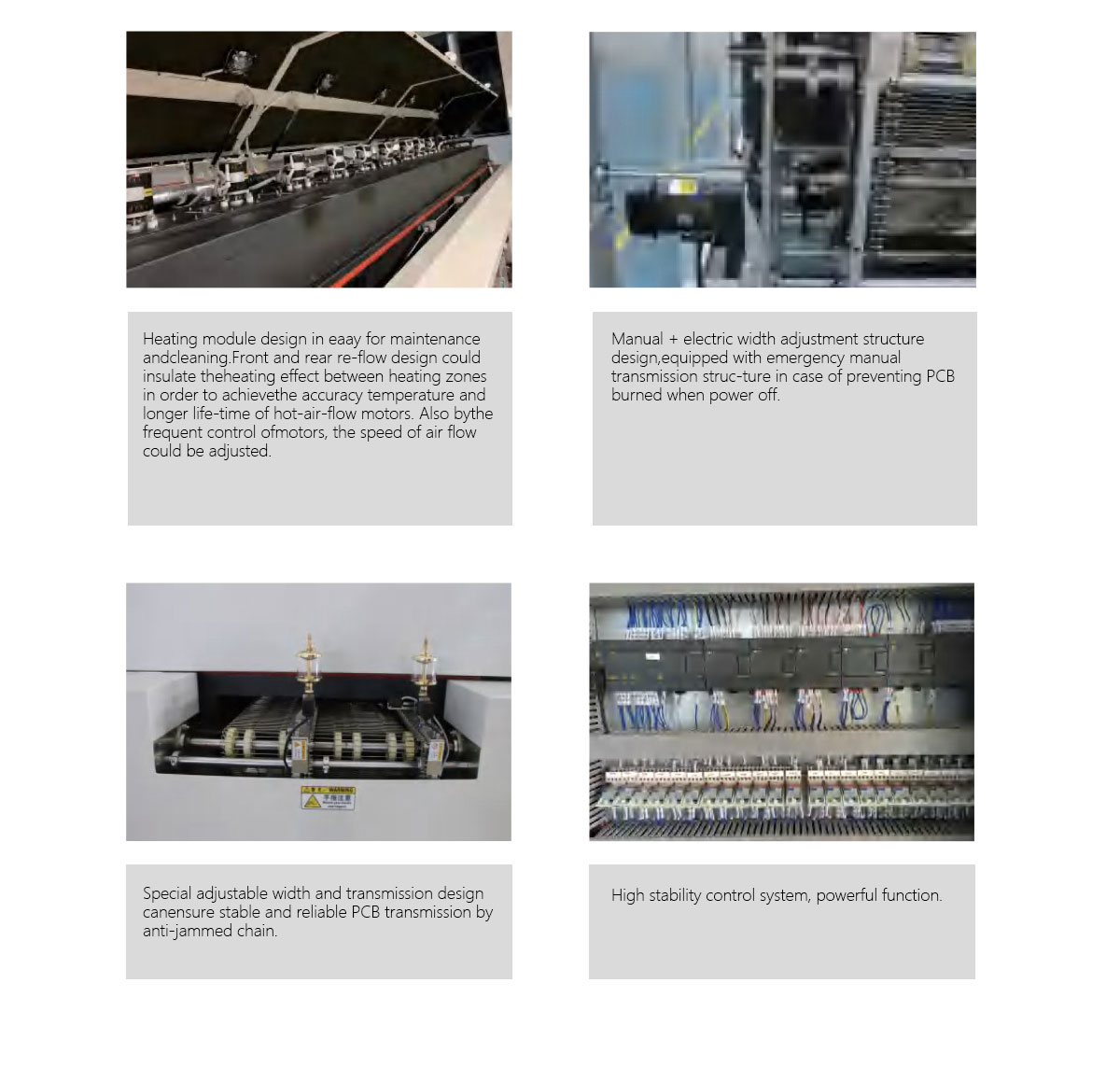

Features of reflow soldering UXT series products:
1. High thermal energy, low energy consumption, high-power motor matched with large wind turbine, theoretical and practical verification. Under the same
conditions, it can ensure that the heat absorption difference between large and small components is minimized, achieving the best thermal balance;
2. The latest insulation technology combined with a brand new furnace structure design can effectively reduce the furnace surface temperature and lower
heat loss;
3. Adopting imported PLC program controller, stable and reliable performance, high temperature control and curve repeatability accuracy;
4. Adopting double-sided guide rails and special hardening treatment, it is sturdy and durable, can be reused repeatedly, and saves more than 50% of costs;
5. The rosin recycling system can be maintained online with a fully modular design, making maintenance convenient and fast, reducing maintenance time;
6. Patent hot air system, with more efficient hot air convection and faster heat compensation;
7. Equipped with a real-time furnace temperature monitoring system, it can automatically generate furnace temperature curves (option);
8. Intelligent data traceability, uploaded to MES system.
Specification:
Model No | UXT-810/UXT-810N | UXT-812/UXT-812N | UXT-810/UXT-810N | UXT-810/UXT-810N |
| Dual tracks | Dual tracks | |||
Heating system | ||||
Heating zone structure | 10 heating zones, | 12 heating zones, | 10 heating zones, | 12 heating zones, |
| 20 heating modules | 24 heating modules | 20 heating modules | 24 heating modules | |
Heating zone length | 3670mm | 4390mm | 3670mm | 4390mm |
Heating up time | 25min | 25min | 25min | 25min |
Outlet Exhaust Diameter,valume | 2-Φ145,Exhaust demand 10m³/min x2 | |||
Cooling system | ||||
Cooling type | Three cooling zones:forced water cooling | |||
Cooling zone length | 1250mm | |||
Chiller power | 5P Water chiller | |||
Conveyor system | ||||
Conveyor Type | Chain + mesh belt synchronous transmission | |||
Conveyer Direction | L→R,R→L | |||
Converyer Height | 900±20mm | |||
Cmponent Height | Clearance above 30mm,Clearance below 25mm | |||
Conveyor Speed | 300mm-2000mm/min | |||
Guide rail structure | Dust free special hardened guide rail | |||
PCB Width | Min50mm-max400mm | min50mm-max250mm | ||
| (Option: max510mm) | (Dual tracks) | |||
| min50mm-max450mm | ||||
| (Single track) | ||||
Fixed Rail Mode | Front rail Fixed(Option:Rear Rail Fixed) | The front and rear guide rails are fixed, | ||
| and the middle two guide rails are movable | ||||
Control system | ||||
Power | AC3Ø 5W380V 50/60HZ | |||
Total Power | 96KW | 117KW | 96KW | 117KW |
Startup Power | 38KW | 42KW | 38KW | 42KW |
Normal consumption | 10KW | 12KW | 11KW | 13KW |
| Temp Control Range | Room temperature to 320℃ | |||
| Control type | PC+PLC Control system | |||
| Temp Control accuracy | ±1℃ | ±1℃ | ||
| PCB Temp Deviation | ±1℃ | ±2℃ | ||
| Data Storage | Process Data and status stotage | |||
| Power Outage Protection | Equipped with UPS | |||
| Operation Interface | Windows Chinese simplified, English online free switching | |||
| N2 area | Full nitrogen filling(The model with "N" refers to the nitrogen model) | |||
| MES | Standard | |||
| Computer | Commercial computer | |||
| General | ||||

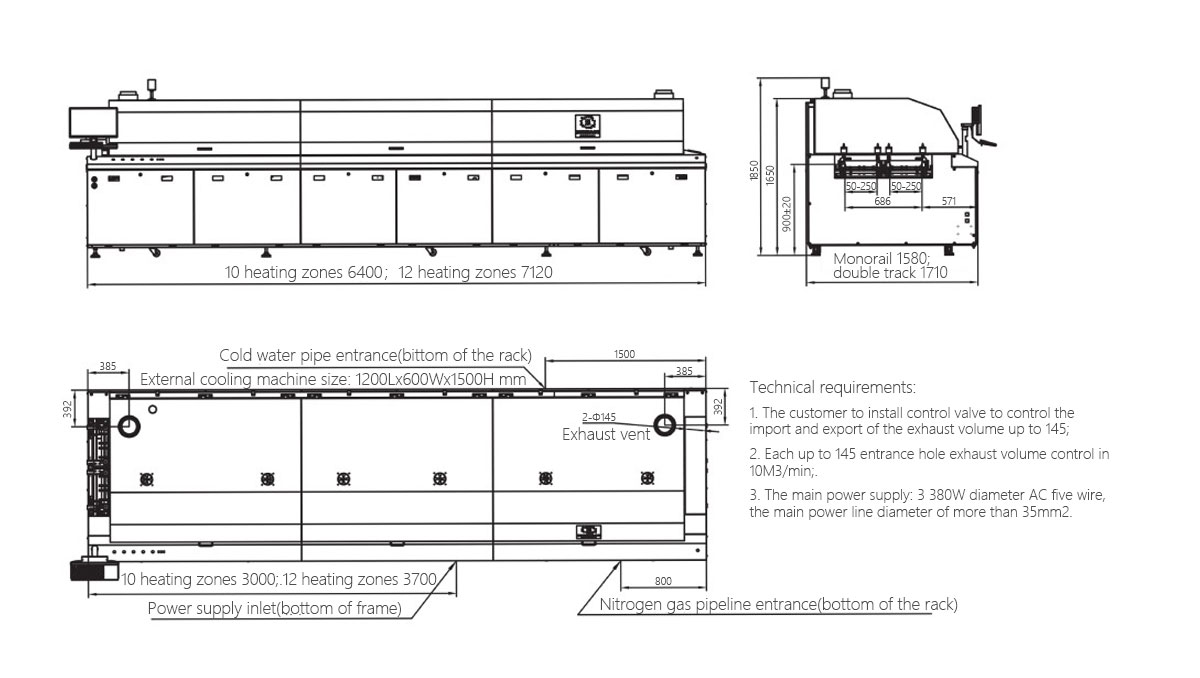

| Dimension(LxWxH) | 6400x1580x1650mm | 7120x1580x1650mm 6400*1710*1650mm | 7120*1710*1650mm | |
| Weight | 2500-2700kg | 3000-3200kg | 2900-3100kg | 3500-3700kg |
| Flux recovery system | Standard | |||
| Color | Bright wrinkled white | |||
