Product Introduction:

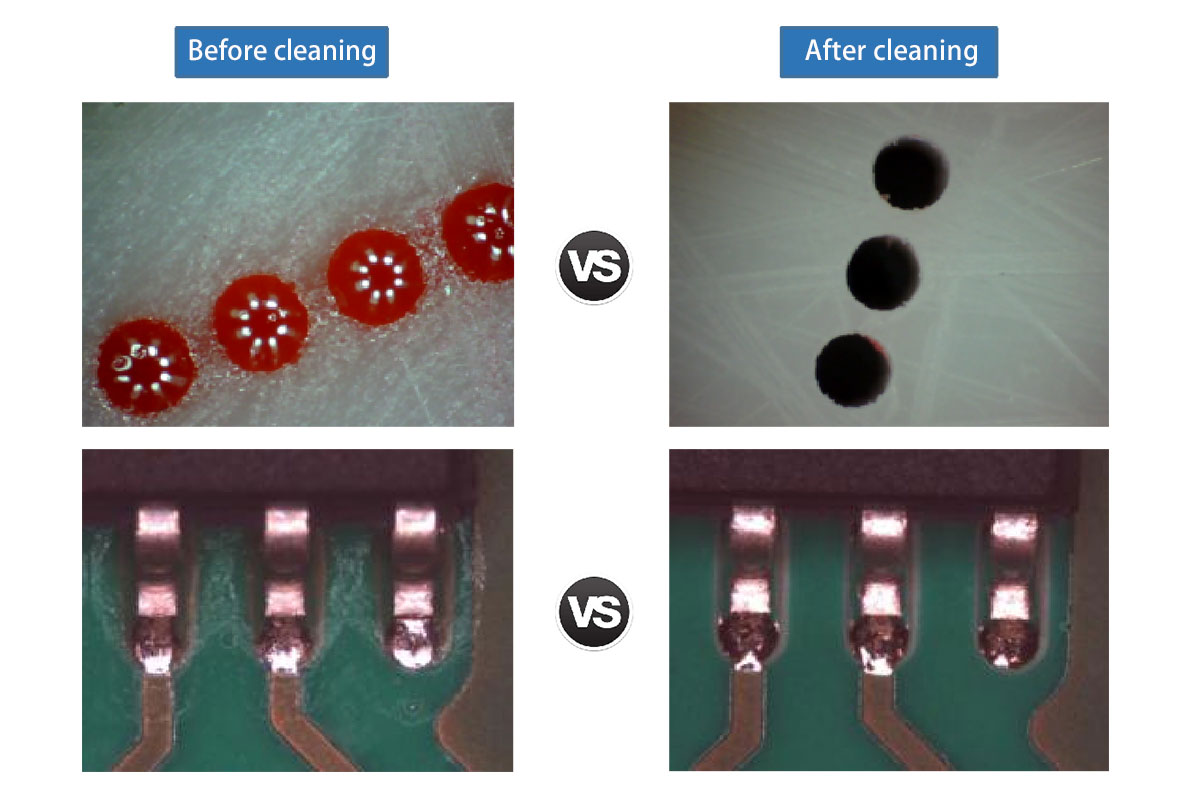

(1) A high-pressure spray system specifically designed for cleaning screen boards, misprinted boards, PCB/PCBA and other processes with water-based cleaning solution.
(2) Dual liquid tank equipped with heating system to meet the needs of cleaning, rinsing, and hot air drying.
(3) Process flow: Cleaning chemical isolation rinsing (open-loop/closed-loop) drying.
(4) Equipped with advanced fully automatic touch screen operation software, program file saving, and easy to use.
(5) The system counting function can automatically accumulate the number of cleaning mesh plates and the number of cycles of filtration.
(6) The liquid and pump pressure can be displayed on the panel pressure gauge, providing timely feedback on the equipment's operating status.
Application case:

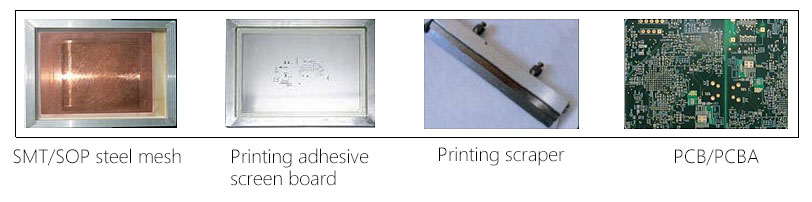

Suitable for SMT/SOP steel mesh, printing adhesive mesh board, printing scraper, PCB/PCBA board.
Product parameters:
| Project | FM41U |
| Applicable mesh size (mm) | L740 * W740 * H40 (max) Special sizes require customization |
| Power supply | AC380V 50HZ |
| Total power | 30KW |
| Range of electric resistance tester | 0～18MΩ |
| Gas source | 0.45～0.7Mpa |
| Water source | 0.2～0.3Mpa |
| Exhaust port | Ø124(W)*30MM(H) |
| Cleaning box capacity | 42L*2PCS（max） |
| Optimal liquid usage | 35L*2PCS |
| Isolation time of cleaning solution | 40S |
| Clean time | 2～8Min |
| Rinse time | 2～8Min |
| Drying time | 2～5Min |
| Machine dimensions (mm) | L1300*W1400*H1850 |
FAQ:
1.Will you provide on-site support?
Our team of qualified and experienced engineers can provide on-site maintenance and repair support. You can use the online chat box Skype、Whatsapp、 Contact us by phone and email, and we are always on standby to assist you in resolving any issues.
2.Will any training be provided?
We provide a complete training program for all industrial testing equipment, maintenance equipment, picking and placing equipment, reflow soldering equipment, wave soldering, selective soldering equipment, solder paste printing machines, PCB splitting machines and other SMT production line equipment in our Shenzhen factory, and offer on-site training at the customer's location. Our plan aims to provide your engineers, technicians, and machine operators with the necessary knowledge to fully utilize the operation and maintenance of our machines.
3.Where can I buy spare parts?
You can visit our spare parts store to obtain the parts you need, which can be paid by bank transfer/PayPal/credit card. In addition, you can contact us to obtain parts and make payment through bank transfer.
