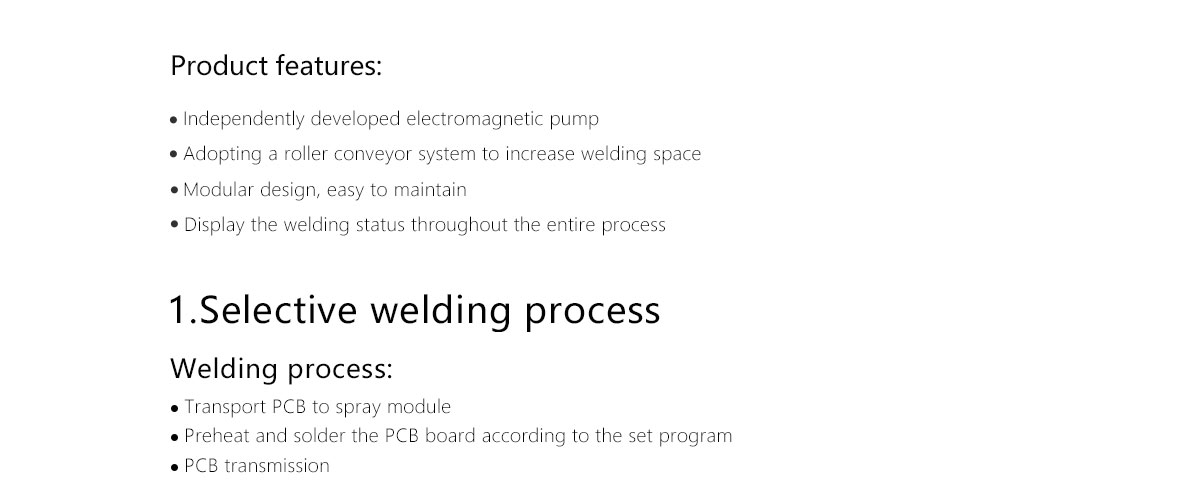

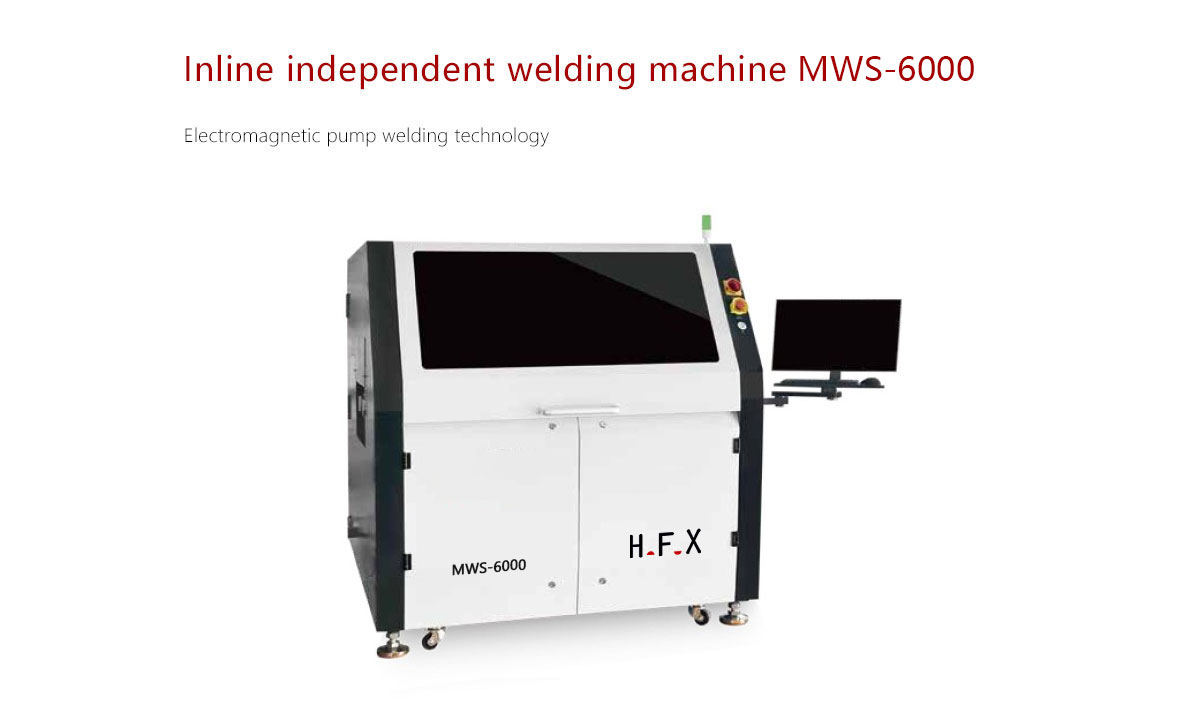

Inline independent selective soldering machine MWS-6000 Feature:
Independent R&D electromagnetic pump；
Modular design,easy to maintain；
Roller conveyor system,increase the welding space；
Display welding status throughout the whole process.

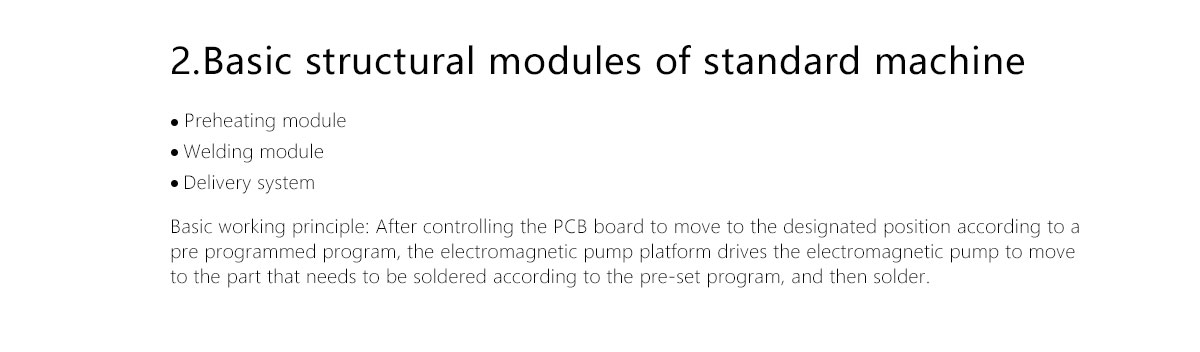

Basic machine module:
| Preheat Module | Soldering Module | Conveyor System |
Working process：

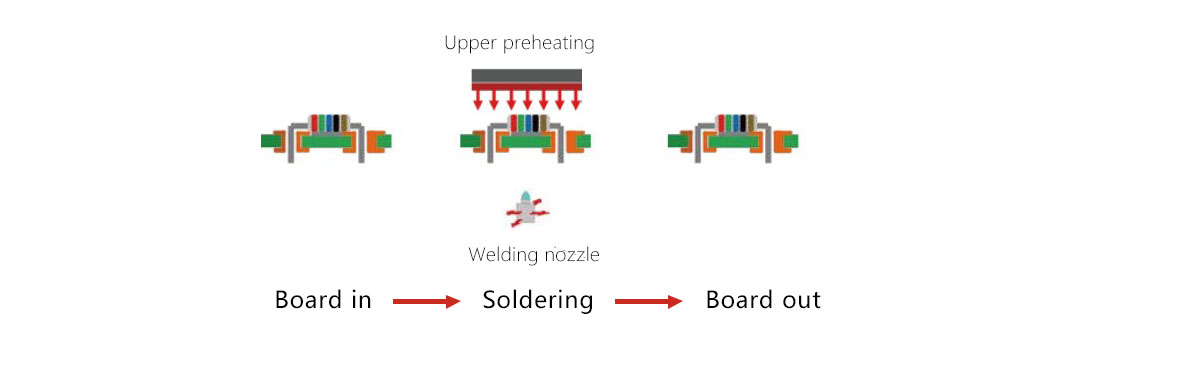

Deliver PCB to the specified position;
According to the set program to heat and solder PCB;
PCB out.
Basic working principle: After the PCB is moved to the specified position according to the program set in advance, after preheating, the platform drives the electromagnetic pump to move to the area which needs to be soldered according to the pre-set program, and then solder.
Product parameters:
| Specifications |
| Model No. | MWS-6000 |
| General Parameters |
| Overall dimension(Not include indicator light and monitor)(mm) | 1550(L)*1930(W)*1630(H) |
| Equipment Weight(kg) | 1050 |
| Max PCB size(mm) | 510(L)x450(W) |
| Min PCB size(mm) | 120(L)x50(W) |
| PCB Top Side Clearance(mm) | 120 |
| PCB Bottom Side Clearance(mm) | 60 |
| PCB process edge(mm) | ≥3 |
| Conveyor Height From Floor(mm) | 900±20 |
| PCB Conveying Speed(m/min) | 0.2-10 |
| PCB Weight (kg) | ≤8 |
| PCB Thickness WithJig(mm) | 1-6 |
| Conveyor Width Adjustment Range(mm) | 50-450 |
| Conveyor Width Adjustment Mode | Electric |
| PCB Conveying Direction | Left to right |
| Air Input Pressure(Mpa) | 0.6 |
| Nitrogen Supply | Offeredby customer |
| Nitrogen InputPressure(Mpa) | 0.6 |
| Nitrogen Consumption(m³/h) | 1.5 |
| Required Purity of Nitrogen(%) | >99.999 |
| Supply Voltage(VAC) | 380 |
| Voltage Tolerance Range(%) | 6-10 |
| Frequency(HZ) | 50/60 |
| Max Power Consumption (kw) | <11 |
| Max Current(A) | <20 |
| Ambient Temperature(℃) | 10-35 |
| Machine Noise Level(dB) | <65 |
| CommunicationInterface | SMEMA |
| Soldering System |
| Max.Soldering distance of Xaxis(mm) | 510 |
| Max.Soldering distance of Y axis(mm) | 450 |
| Max.Soldering distance of Z axis(mm) | 60 |
| Nozzle outer diameter(mm) | 5、6、8、9、10、12、14 |
| Nozzle inner diameter (mm) | 2.4、3、4、5、6、8、10 |
| Max soldering wave height(mm) | 5 |
| Solder pot capacity (kg) | Approx.13kg(Sn63Pb)/solder pot |
| Approx.12kg(lead-free)/solder pot |
| Max soldering temperature(℃) | 330 |
| Soldering heating power (kw) | 1.15 |
| Preheating System |
| Preheat temperature range(℃) | <200 |
| Heating power (kw) | 5 |
| Heating mode | Hot air |
| Remarks:Other models of MWS series can be customized. |
FAQ:
Q: What is a selective soldering machine?
A: A selective soldering machine, as offered by I.C.T, is specialized equipment designed to precisely solder specific components or areas on a printed circuit board (PCB), showcasing our manufacturing expertise.
Q: What is selective wave soldering?
A: Selective wave soldering is a precision soldering process commonly employed in electronics manufacturing, exemplified by I.C.T. It selectively solders specific areas or components on a PCB with accuracy and control.
Q: What is the difference between selective soldering and wave soldering?
A: Selective soldering, championed by I.C.T, targets specific soldering areas or components on a PCB with precision, while wave soldering covers the entire PCB with solder in a single pass. Selective soldering provides greater control and accuracy in soldering.
Q: What is wave soldering in PCB?
A: Wave soldering in PCB (Printed Circuit Board) manufacturing is a process where the entire PCB is passed over a wave of molten solder, typically in a conveyor system. This process creates solder joints on the through-hole components, ensuring electrical connections on the PCB. It's a widely used technique in electronics assembly.
