Product Introduction:
(1) This device is used for cleaning the scraper of printing machines, such as cleaning residual solder paste, dust, etc.
(2) The "scraper cleaning machine" uses a scraper to circulate in a rotating basket and receive high-pressure spray cleaning, ultrasonic cleaning, rolling rinsing, high flow fan hot air drying and other technologies to ensure the cleaning effect.
working principle:
(1) The cleaning process generally uses water-based cleaning solution, which is added externally. Before cleaning, the liquid must be heated by a heater to enhance the cleaning ability. Set the cleaning time on the touch screen. When cleaning, use the high-pressure water flow generated by the water pump to completely peel off the residual solder paste on the scraper, achieving the purpose of chemical cleaning. The stripped solder paste is filtered out through a bag filter device for recycling, allowing the cleaning solution to be reused and extending its lifespan. Ensure that there are no residues left after the cleaning parts are dried. It will not lead to a gradual decrease in the effective ingredients in the solution and a shortened lifespan due to the permanent binding of pollutants, and is safe and reliable after cleaning.
(2) The rinsing process uses water as the rinsing solution, which is added through an external pipeline. Set the rinse time on the touch screen. During rinsing, use the pressure generated by the water pump to impact and peel off the liquid residue on the fixture surface. The stripped pollutants are filtered out through a filtering device to avoid secondary pollution and ensure cleaning effectiveness.
(3) The drying process involves using a heater to generate high temperatures and circulating hot air to dry the small amount of water and moisture carried out by the scraper from the rinsing tank. During the process of wind flow, the heater rapidly heats the wind, and when the hot air blows towards the fixture surface, the circulating hot air accelerates the evaporation of the liquid. Remove moisture and water vapor from the fixture to achieve the purpose of drying.

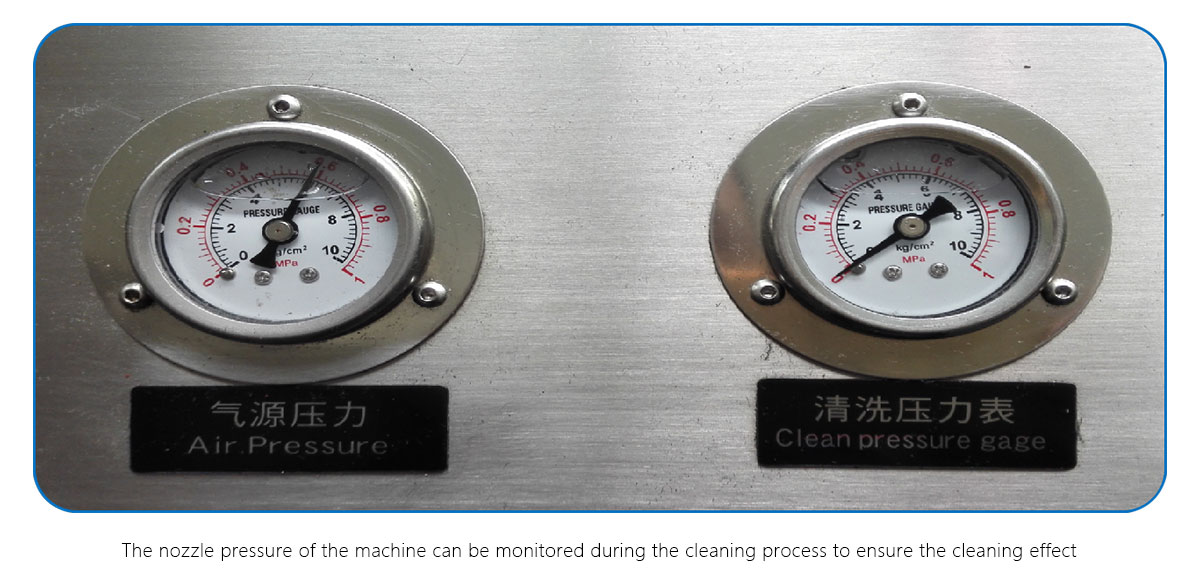

Product features:

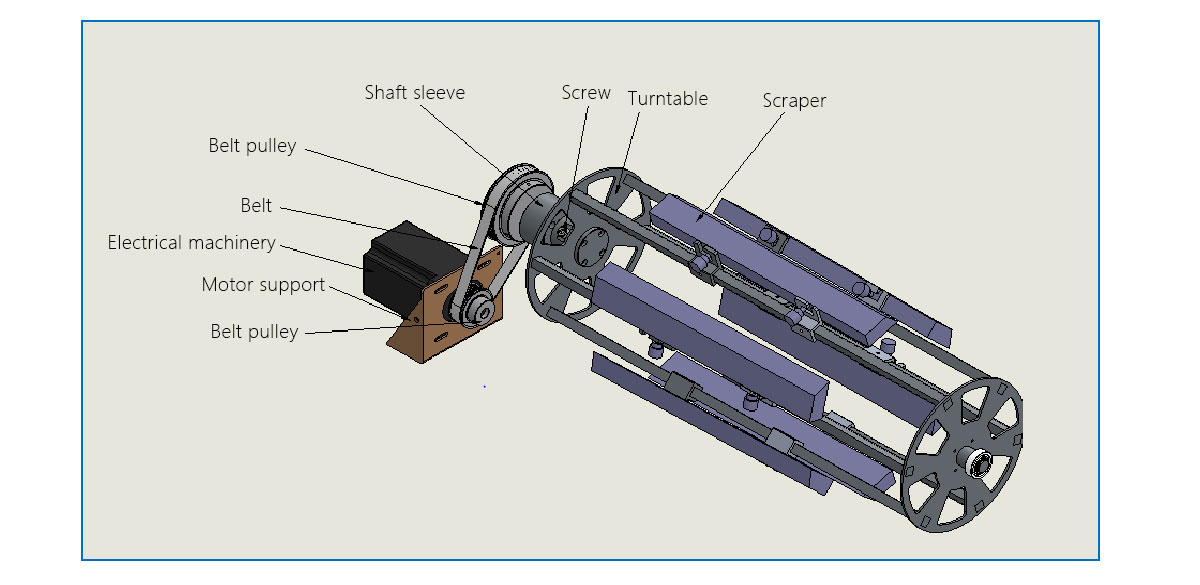

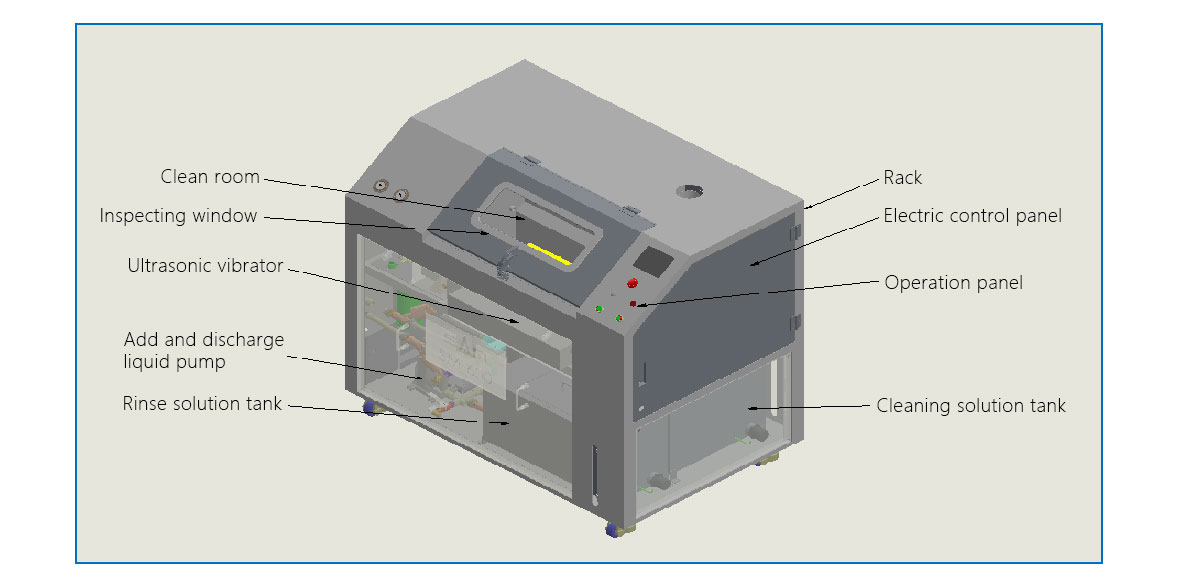

Product Structure:
Product advantages:
1.Automatic liquid addition and discharge, rinsing function
Compared to similar products from other brands, this equipment has added an automatic liquid addition and discharge system, as well as a rinsing function, making it easier and more convenient for operators.

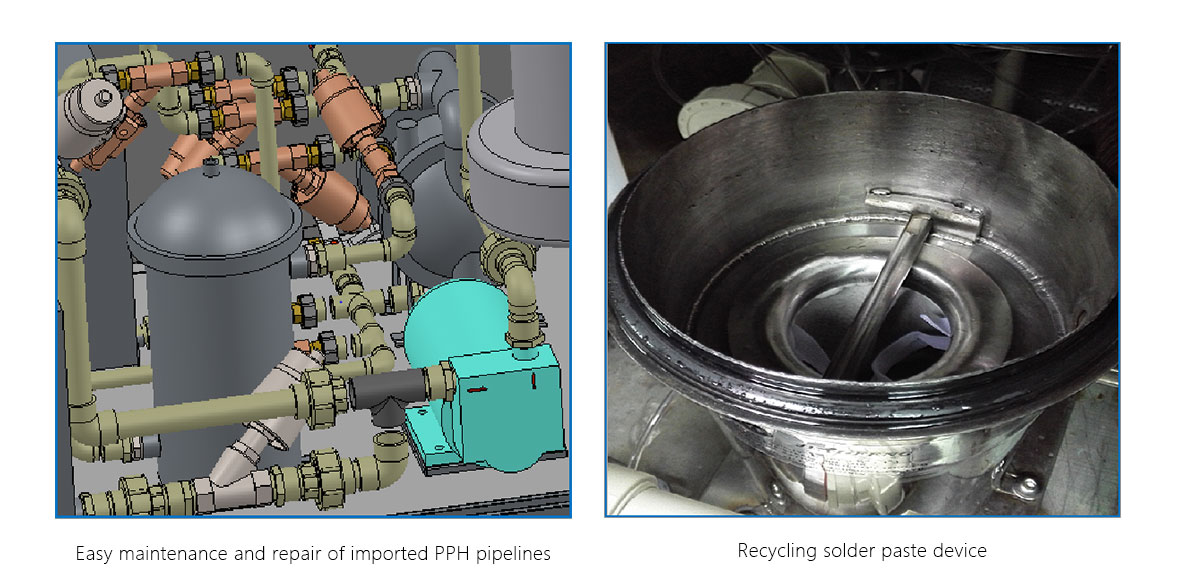

2. Pipeline materials
Imported PPH pipeline material, using hot melt welding, can withstand strong acids and alkalis, ensuring long-term use without leakage. Compared to its peers, stainless steel pipeline maintenance, upkeep, and replacement are more convenient and simple.
3. Solder paste recycling
In response to the excessive amount of solder paste on the scraper, we have specially customized a washable stainless steel bag filter for recycling solder paste. Compared to traditional disposable filters, it significantly reduces the cost of consumables.

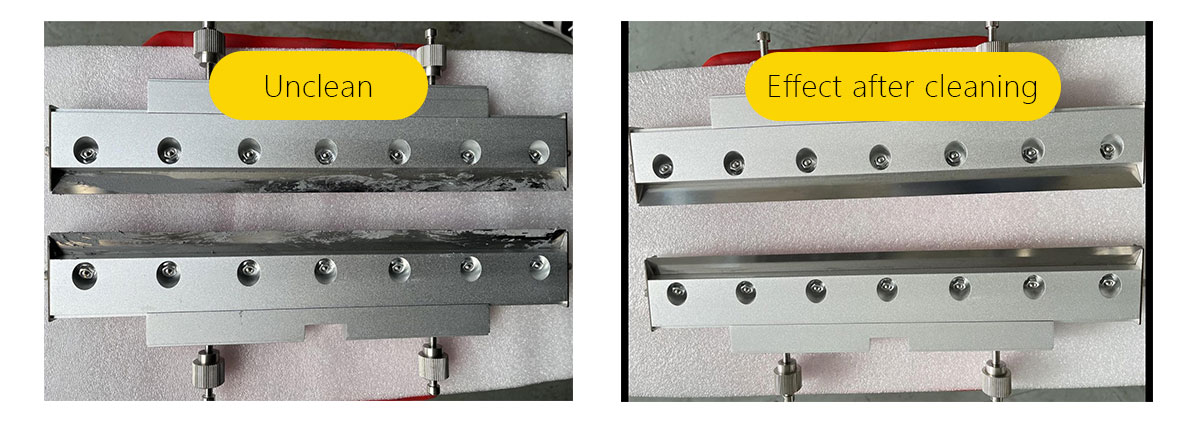

Cleaning comparison:
Product parameters:
| Equipment size | 1440*1150*1240 |
| Working basket diameter | 200mm |
| Maximum length of scraper | 600mm |
| Work basket load | 20KG |
| Gas pressure range | 0.4-0.6Mpa |
| Tank capacity | 60L |
| Spray pressure | 0.15-0.3Mpa |
| Maximum power | 18KW |
| Voltage/Frequency | 380V/50HZ |
| Recommended cleaning agents | Water based cleaning agent FR-6001 |
