Turn conveyor:
(1)180 degree turning PCB， conveying to the next station for the other PCB side production； automated turning， reduce manual work;
(2)Turn or not turn the PCB depends on inputting short circuit or no short circuit signal according to the previous station;
(3)Set to be conveying straight ly for a period and served as buffer device;
(4)PLC control， automated production， reliable turning， stable conveying;
(5)Width adjusting manually， adjustable PCB conveying width;
(6)Ensure high safety protective performance with fully closed type design for rotation height;
(7)PCB can be continuously turned 180 degree， back and forth， straight and reverse(reduce production cycle time);
(8)Standard SMEMA communication.
Product parameters：
| Model | FU-350 | FU-460 |
| Machine dimension(mm) | 600L*1030W*1340H | 600L*1140W*1340H |
| PCB Size(mm) | Min：70L*50W*0.7H~ | Min：70L*70W*0.7H~ |
| Max：520L*350W*4.8H | Max：520L*460W*4.8H |
| Approx machine weight | 200kg | 250kg |
| Power | 0.2KW | 0.2KW |
| Loading capacity | 0-5kg |
| Conveying height | 900±20mm |
| Track adj using way | Manual |
| Control mode | PLC |
| Production cycle | ≤10/s |
| Power supply | AC110~220V 50/60Hz（Customization supported） |
| Gas pressure | 0.4~0.7MPa |
| Direction | Lt oR(Options：RtoL) |
> Customization can be made according to customer needs.
FAQ:

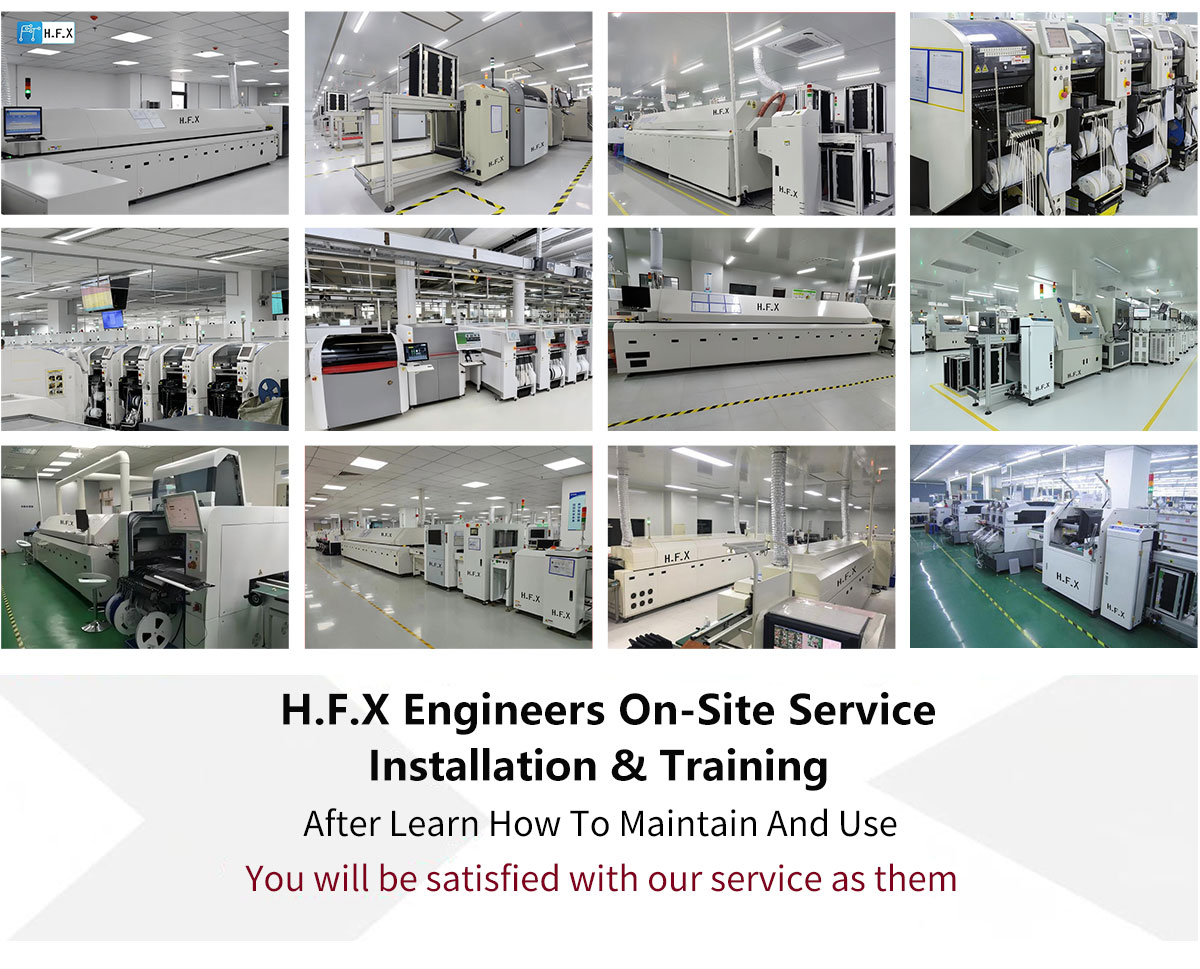

1.Will you provide on-site support?
Our team of qualified and experienced engineers can provide on-site maintenance and repair support. You can use the online chat box Skype、Whatsapp、 Contact us by phone and email, and we are always on standby to assist you in resolving any issues.
2.Will any training be provided?
We provide a complete training program for all industrial testing equipment, maintenance equipment, picking and placing equipment, reflow soldering equipment, wave soldering, selective soldering equipment, solder paste printing machines, PCB splitting machines and other SMT production line equipment in our Shenzhen factory, and offer on-site training at the customer's location. Our plan aims to provide your engineers, technicians, and machine operators with the necessary knowledge to fully utilize the operation and maintenance of our machines.
3.Where can I buy spare parts?
You can visit our spare parts store to obtain the parts you need, which can be paid by bank transfer/PayPal/credit card. In addition, you can contact us to obtain parts and make payment through bank transfer.
