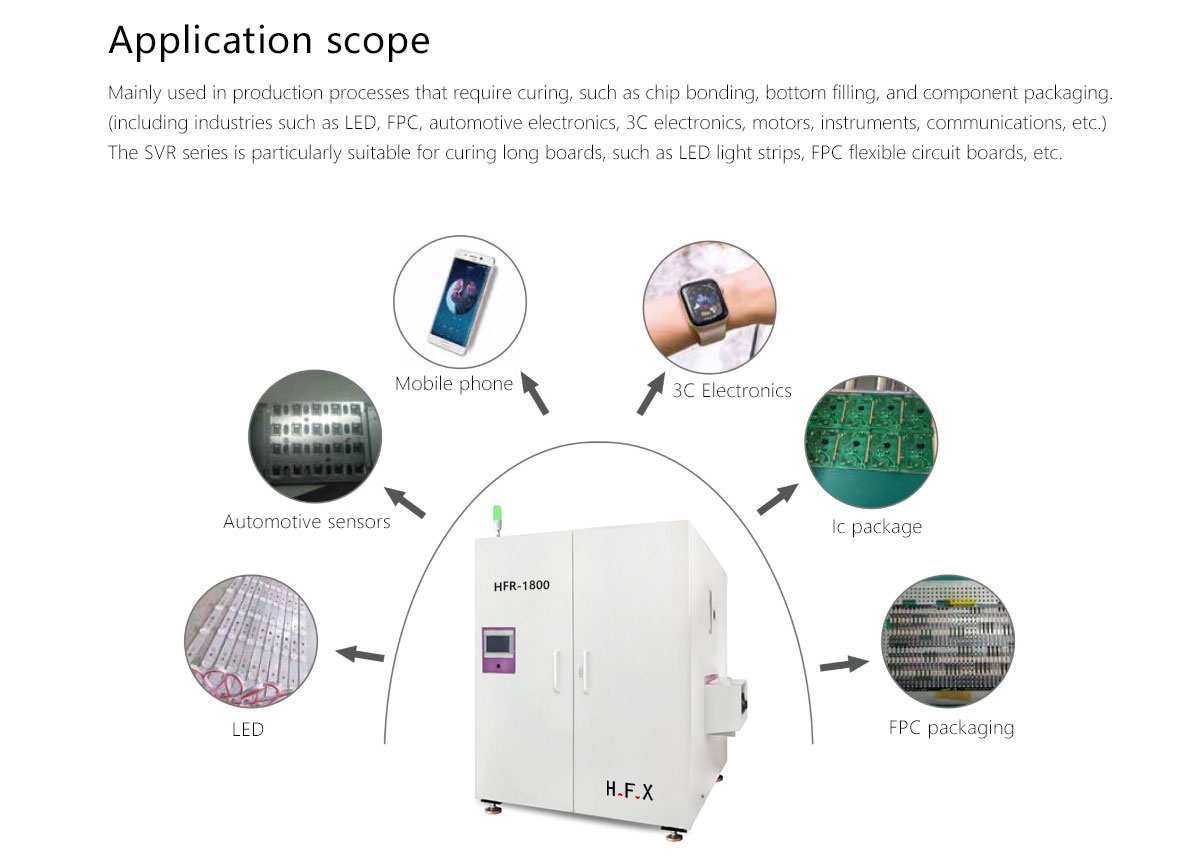

Introduction to Vertical Curing Furnace：
In-line vertical oven, compact structure, small footprint, maximum saving workshop space; High production efficiency, much higher than the traditional curing oven, especially for products requiring long curing time in the oven,which can effectively improve production capacity, the market demand for vertical oven is increasing, it will replace the traditional curing oven and become a trend.

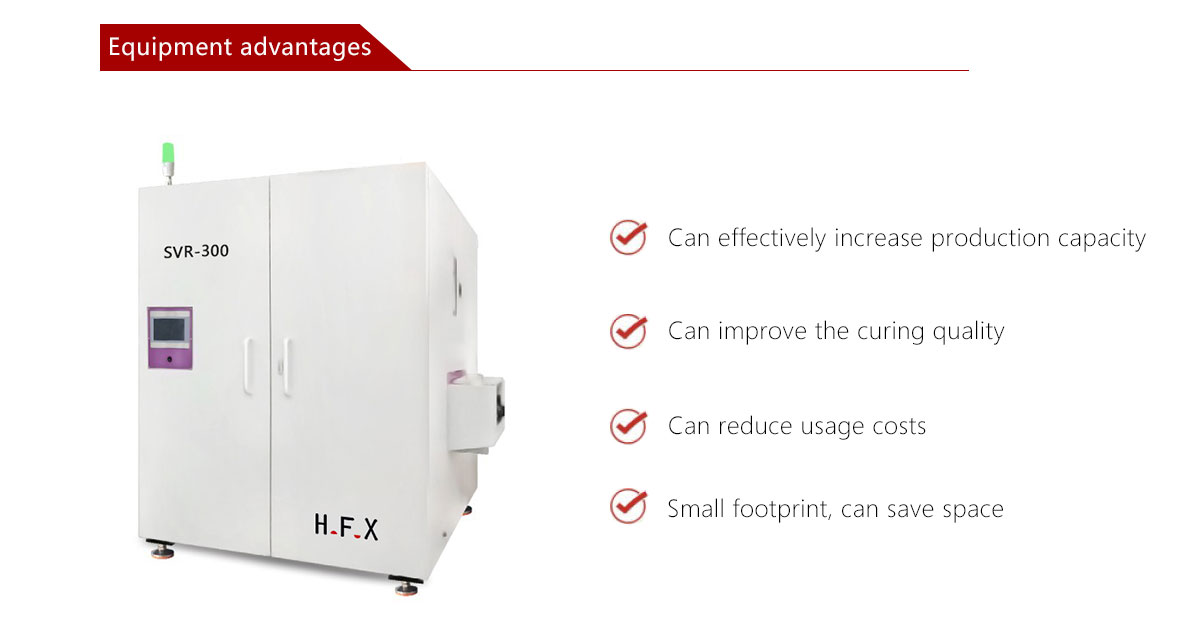

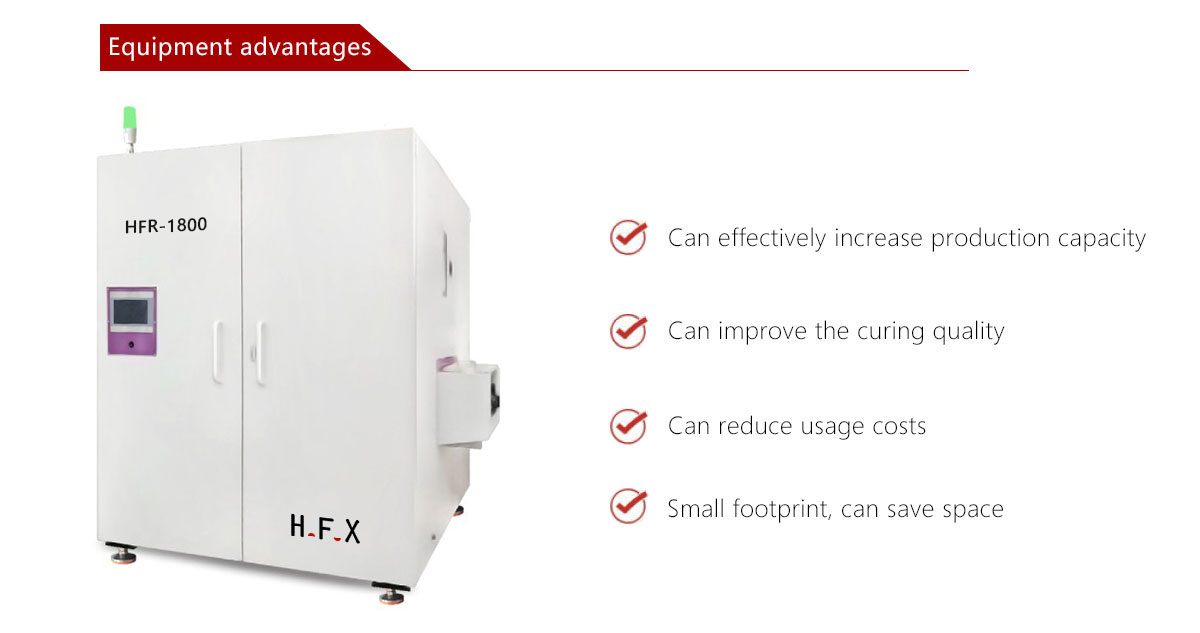

Characteristics of vertical solidification furnace products:
Effectively improve the capacity；
Enhance the curing quality；
Small occupying area and save，the workshop space；
Lower the use-cost；

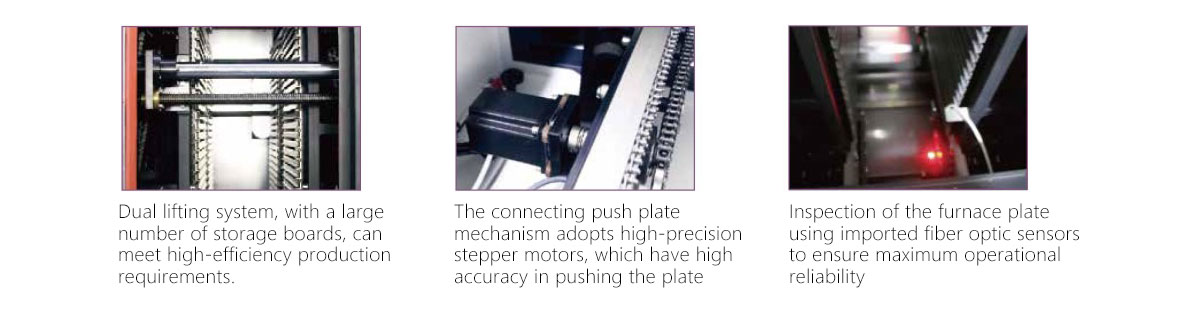

Double lifting system， great quantity of storage space， can meet the high efficiency production requirements；
Adopts high accuracy step motor for buffer and push structure， ensure the pushing accuracy；
PCB conveying detection in the oven adopts imported fiberoptic sensor which greatly ensure the operation reliability；
Service:
1. Pre-consultation: Provides professional SMT solutions for the full line.
2. Factory Warranty: One-year warranty for factory service.
3. Installation: On-site installation and commissioning, to ensure smooth production.
4. Technical Training: Provides professional training from Level 1 to Level 3.
5. Technical Support: Provides 7*24 technical support.
6. Software Upgrade: Offers lifetime free software upgrades for all products.
Product parameters:
| SVR SERIES Specification | ||||
| Model | HFR-1800 | HFR-1800D | HFR-1800L | Remarks |
| Machine Dimension | L2140xW1800xH2150mm | L2390xW1870xH2150mm | L2870xW2010xH2150mm | |
| Machine Weight | Approx.1600kg | Approx.1800kg | Approx.2000kg | |
| Product size | MAX：W250*L320mm | MAX：W320*L410mm | MAX：W460*L530mm | |
| Inlet height | 900±20mm | |||
| Storage type | Vertical storage | |||
| Storage quantity | Max product storage number：60pcs | Can be customized | ||
| Pitch height | Integral multiple of 25.4mm | Can be customized | ||

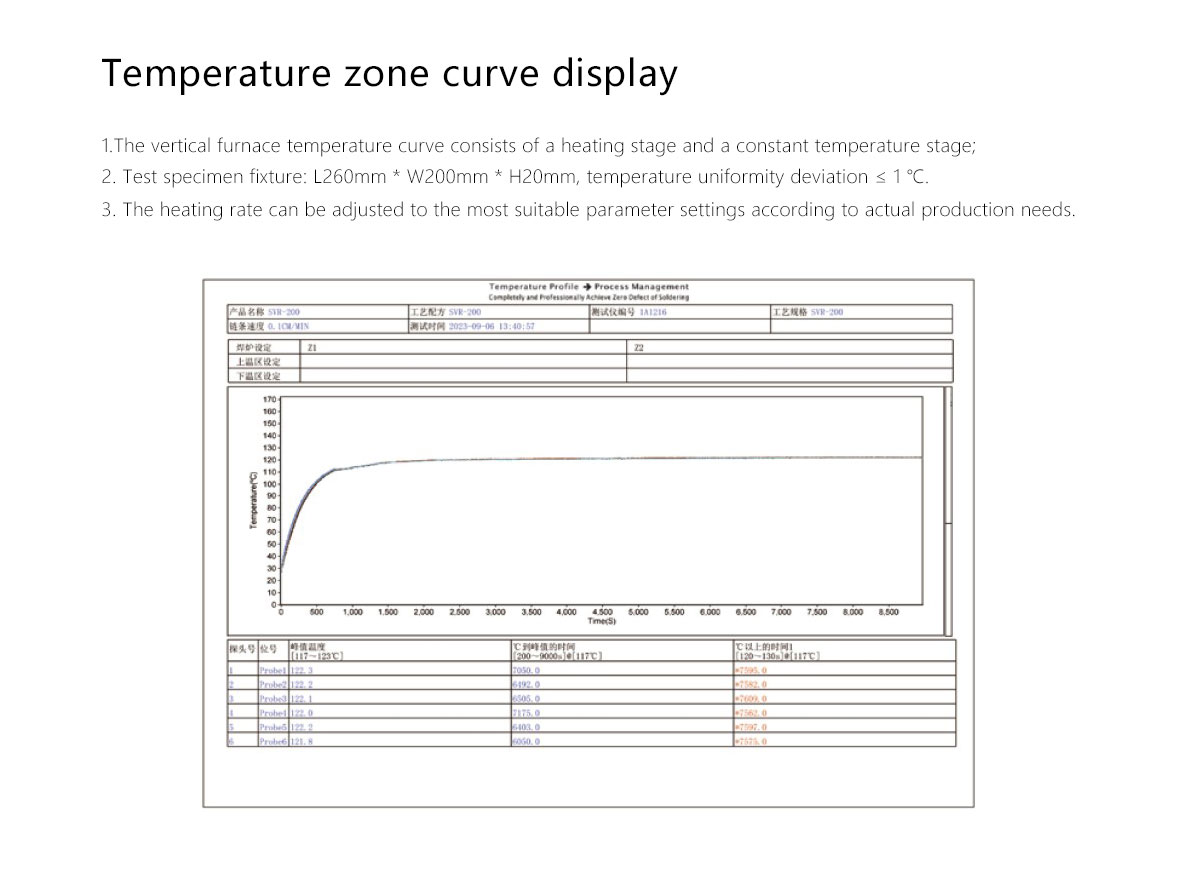

| Temperature range | Room temp~200℃ | |||
| Warming up time | Approx.15min | Set temp 150℃ | ||
| Running power | Approx.6KW | |||
| Total power | 45KW | |||
| Temperature control | ±1℃ | |||
| Accuracy | ||||
| Abnormal alarm | 3-color signal lamp+Human-machine interface prompt | |||
| Power supply | 3P5L 380V 50/60Hz | |||
