Product features:
1. Alignment accuracy: ± 10.0 micron/micron @ 6 σ, Cp ≥ 2.0.
2. Printing accuracy: ± 15.0 micron/micron @ 6 σ, Cp ≥ 2.0.
Product parameters:
| PCB Parameters | |
| Maximum board size (XxY) | 650mm x610mm |
| Minimum board size (XxY) | 50mmx50mm |
| PCB Thickness | 0.4mm~6mm |
| Warpage | ≤ 1% Diagonal |
| Maximum board weight | 5Kg |
| Gap at the edge of the board | Configuration to 3mm |
| Maximum bottom gap | 20mm |
| Transmission speed | 1500mm/Second(Max) |
| Direction of transmission track | 900±40mm |
| Transmission mode | Left-Right, Right-Left, Left-Left, Right-Right（Program Settings) |
| PCB clamping method | One segment track |
| Plate support method | Programmable elastic lateral pressure+adaptive plate thickness+edge locking substrate clamping (options: 1. Bottom multi-point local vacuum: 2. Bottom integral suction chamber vacuum) |
| Printing Parameters | |

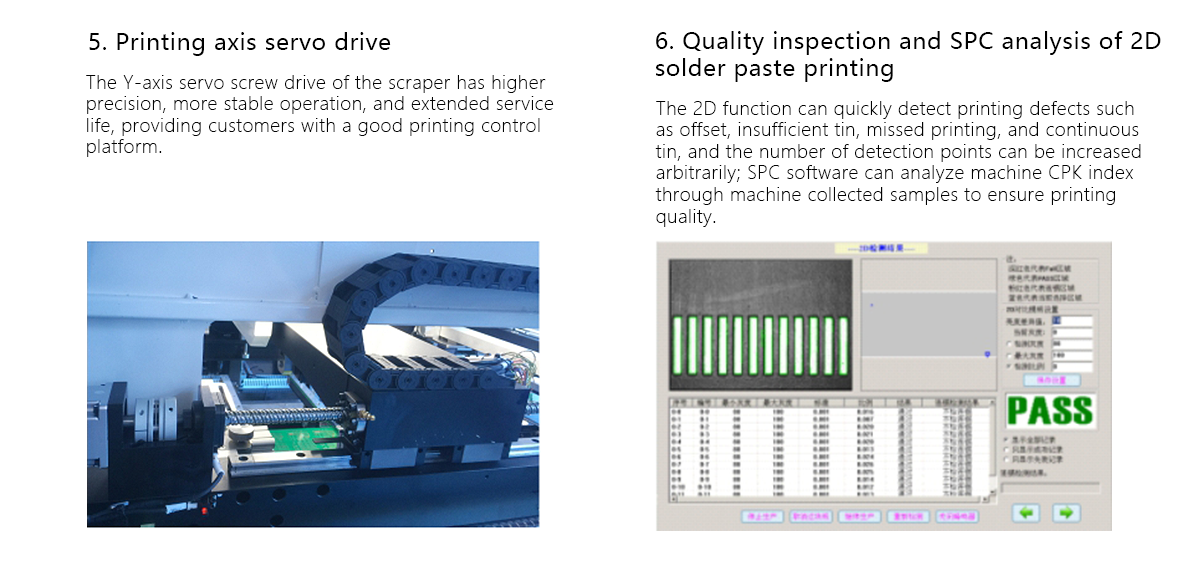

| Print Head | Suspended intelligent printing head (two independent direct coupled motors) |
| Module frame size | 650mm*550mm-800mm*800mm |
| Maximum printing area (XxY) | 650mm x610mm |
| Scraper method | Steel scraper/adhesive scraper (angle 45 °/55 °/60 ° selected according to printing process matching) |
| Squeegee length | 300mm+620mm (optional with length of 200mm-650mm) |
| Scraper height | 65 ±1mm |
| Thickness of scraper blade | 0.25mm Diamond like carbon coating |
| Print Mode | Single or double scraper printing |
| Demoulding length | 0.02 mm-12 mm |
| Printing speed | 0-200 mm/s |
| Printing pressure | 0.5kg-10Kg |
| Printing schedule | ± 325mm (from the center) |
| Cleaning parameters | |

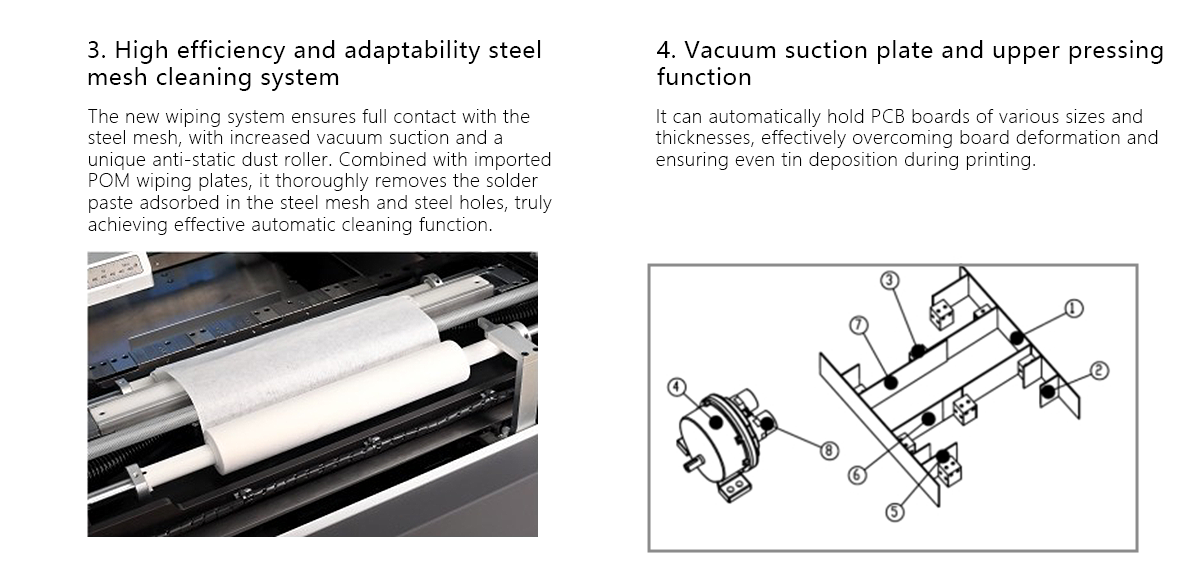

| Cleaning method | 1. Drip shower cleaning system; 2. Dry, wet, and vacuum modes |
| Cleaning and wiping board length | 400mm+650mm (optional with 300mm, 500mm) |
| Images parameter | |
| Film and Television Perspective | 8mm x 6mm |
| Platform adjustment scope | X:±5.0mm, Y:±7.0mm.θ:±2.0° |
| Reference point type | Standard shape reference points (see SMEMA standard), solder pads/openings |

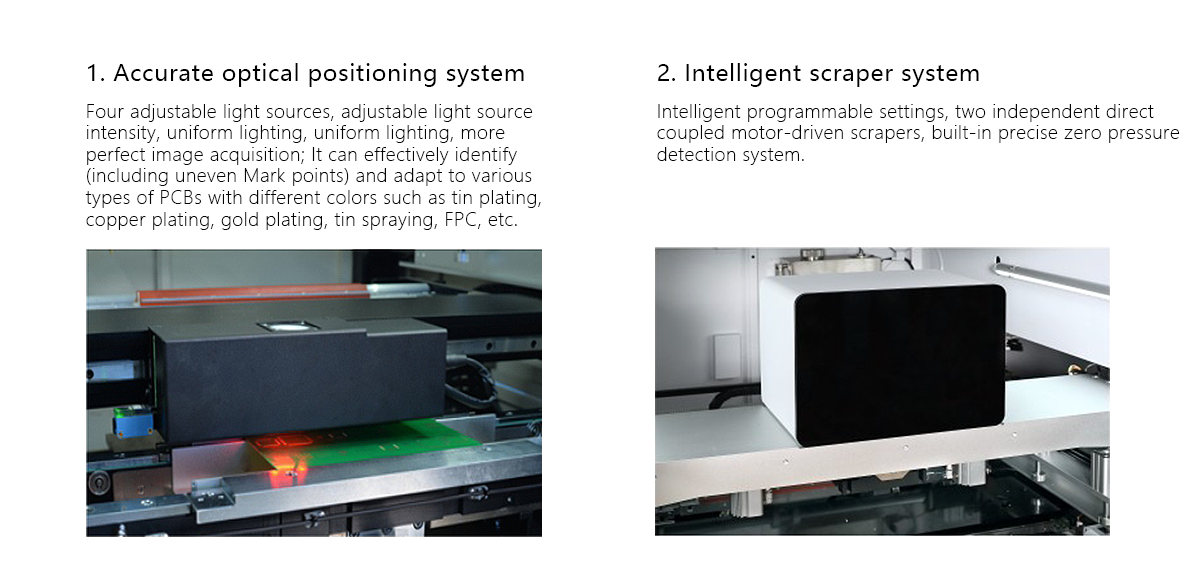

| Camera system | Individual camera, separate upward/downward imaging visual system |
| Performance parameter | |
| Repetitive accuracy of image calibration | ±10.0μm@6σ,Cpk≥2.0 |
| Printing accuracy | ±15.0μm@6σ.Cpk≥2.0 |
| Cycle time | ＜8s（Excluding printing and cleaning） |
| Change line time | ＜5mins |
| Equipment parameters | |
| Power requirements | AC220V±10%,50/60HZ,15A |
| Compressed air requirements | 4~6Kg/cm2 |
| Gas consumption | About 5L/min |
| Operating system | Windows XP(Option Win7) |

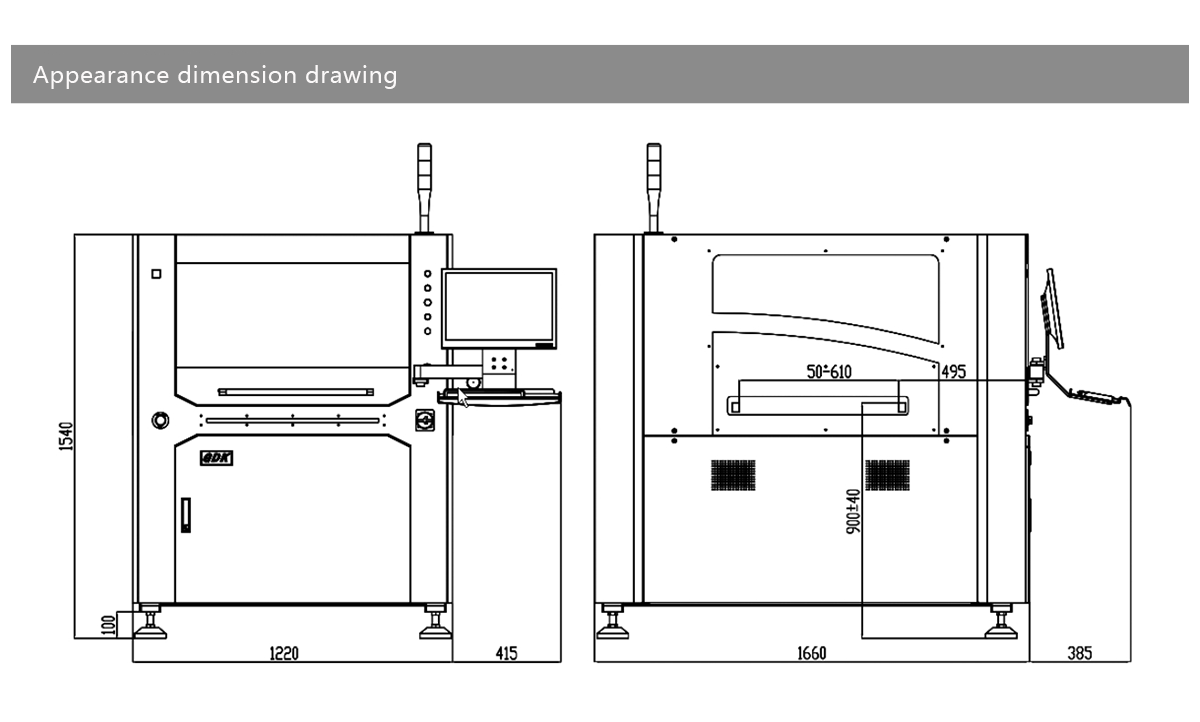

| Outline dimension | 1220mm (L) x1660mm (W) x1540mm (H) (excluding tri color lights, monitor, and keyboard) |
| Machine weight | About 1380Kg |
| User Permissions | Different users have different permissions (fingerprint recognition access/password input) |
| Ambient temperature | 23±3℃ |
| Relative humidity | 45-70%RH4 |
